Technical reference

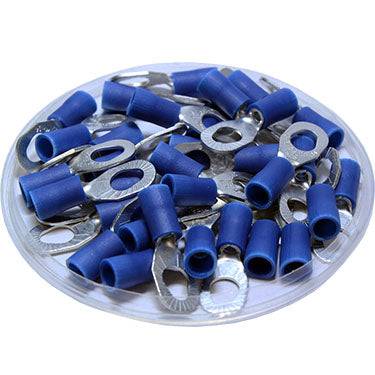

Procurement reference model: MSRVB2-3753. Wire Size: 16-14 AWG; Stud Sizes: #6, #8, #10; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Sizes | #6, #8, #10 |
| Color | Blue |
| T | 0.8mm (.03") |
| L | 24.3mm (0.96") |
| F | 7.9mm (0.33") |
| E | 10mm (0.39") |
| W | 8.6mm (0.34") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.9") |
| D2 | 3.7mm - 4.3mm - 5.3mm (0.15" - 0.17" - 0.21") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Current | 30AMP |
| Seam | Brazed |
| Max Electrical Rating | 600 Volts (105 o C) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
