Technical reference

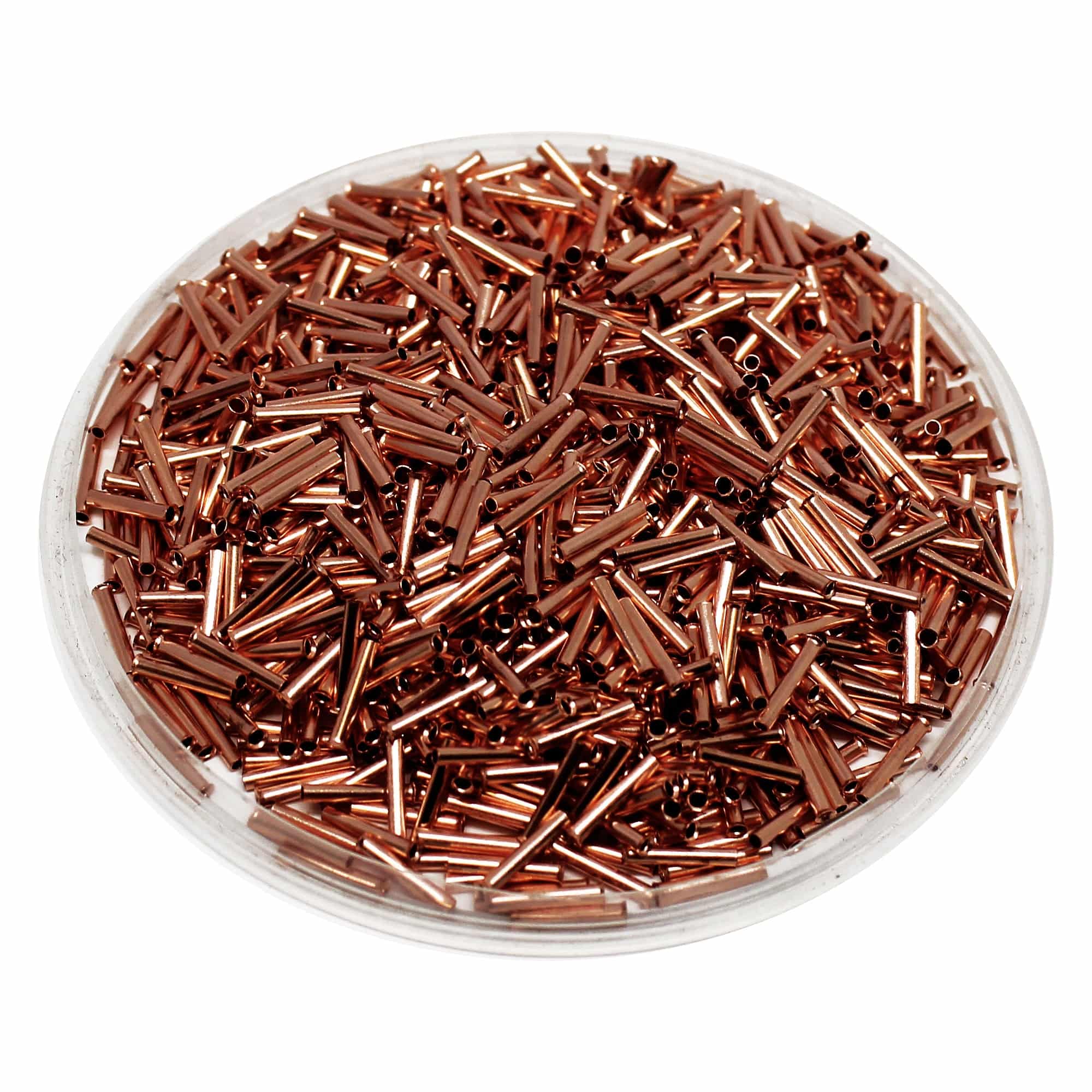

Procurement reference model: NT07508. Wire Size: 20 AWG; Material: Copper; L1: 8mm (0.31"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1000 · source pack reference |
| Wire Size | 20 AWG |
| Material | Copper |
| L1 | 8mm (0.31") |
| D | 1.5mm (0.05") |
| D1 | 1.2mm (0.04") |
| D2 | 1.9mm (0.07") |
| Max Electrical Rating | Up to 2000V |
| Max Electrical Current | 17A |
| Max Operating Temperature | 1984 o F (1085 o C) |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 8 mm |
| Conductor size | 20 AWG (0.75mm²) |
Drawings and product details
