Technical reference

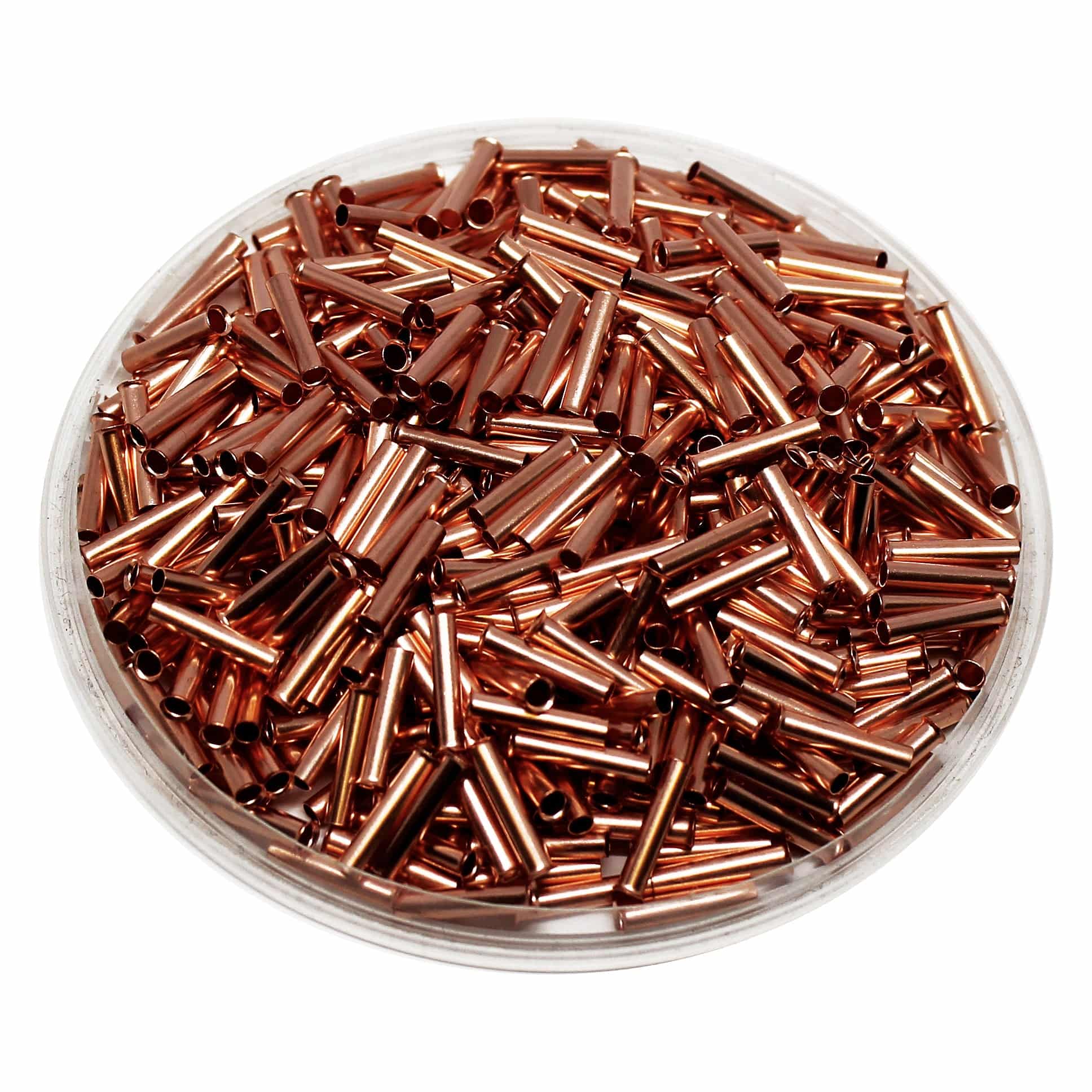

Procurement reference model: NT15010. Wire Size: 16 AWG; Material: Copper; L1: 10mm (0.39"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1000 · source pack reference |
| Wire Size | 16 AWG |
| Material | Copper |
| L1 | 10mm (0.39") |
| D | 2mm (0.08") |
| D1 | 1.7mm (0.06") |
| D2 | 2.5mm (0.08") |
| Max Electrical Rating | Up to 2000V |
| Max Electrical Current | 18A |
| Max Operating Temperature | 1984 o F (1085 o C) |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 10 mm |
| Conductor size | 16 AWG (1.50mm²) |
Drawings and product details
