Technical reference

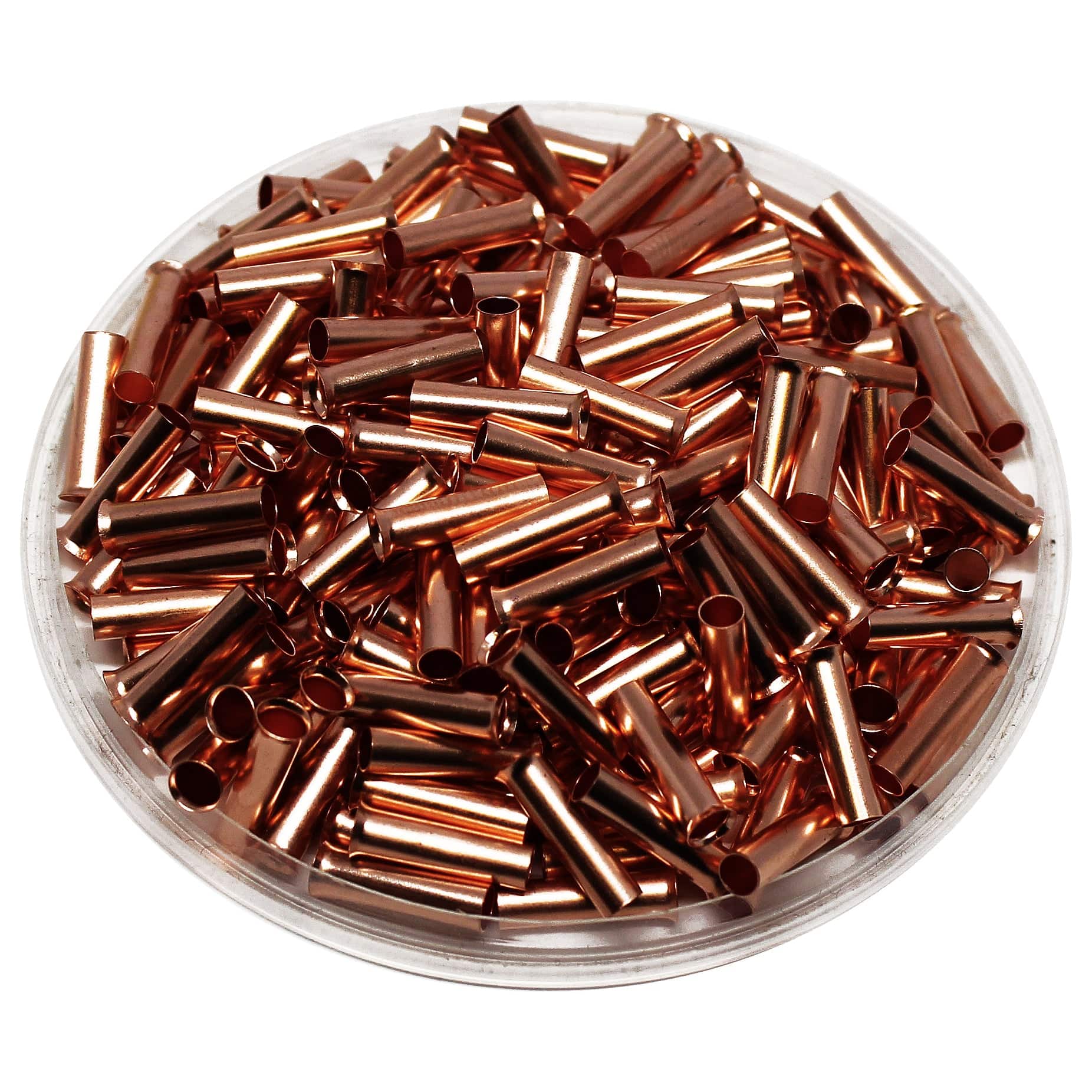

Procurement reference model: NT40012. Wire Size: 12 AWG; Material: Copper; L1: 12mm (0.47"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1000 · source pack reference |
| Wire Size | 12 AWG |
| Material | Copper |
| L1 | 12mm (0.47") |
| D | 3.2mm (0.13") |
| D1 | 2.8mm (0.11") |
| D2 | 3.9mm (0.15") |
| Max Electrical Rating | Up to 2000V |
| Max Electrical Current | 35A |
| Max Operating Temperature | 1984 o F (1085 o C) |
| UL Approved | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Pin Length | 12 mm |
| Conductor size | 12 AWG (4.00mm²) |
