Technical reference

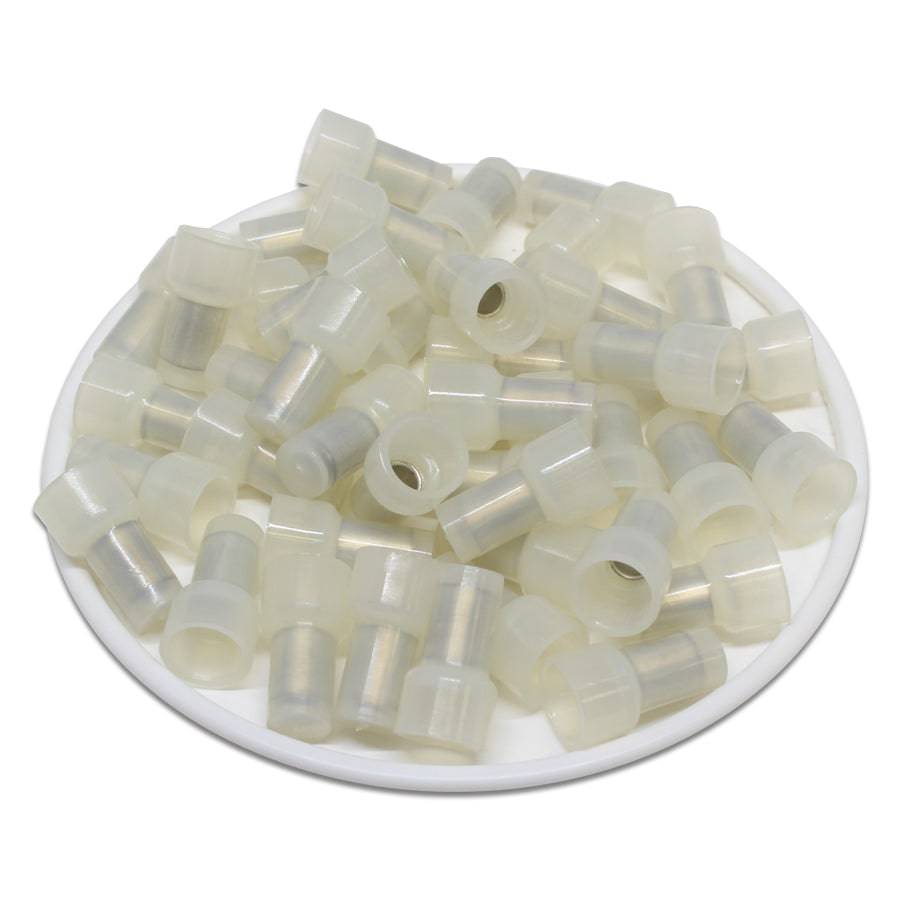

Procurement reference model: PB2. Wire Range: 16 to 14 AWG; L: 0.79" (15.2mm); F: 0.35" (8.8mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16 to 14 AWG |
| L | 0.79" (15.2mm) |
| F | 0.35" (8.8mm) |
| D | 0.25" (6.3mm) |
| W | 0.23" (5.8mm) |
| T | 0.02" (0.45mm) |
| E | 0.28" (7.0mm) |
| C | 0.09" (3.1mm) |
| Terminal Material | Copper |
| Insulation Material | UL Approved 94U-V Nylon 6/6 |
| Color | Natural |
| Temperature Rating | 105 o C - 600 Volts |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
