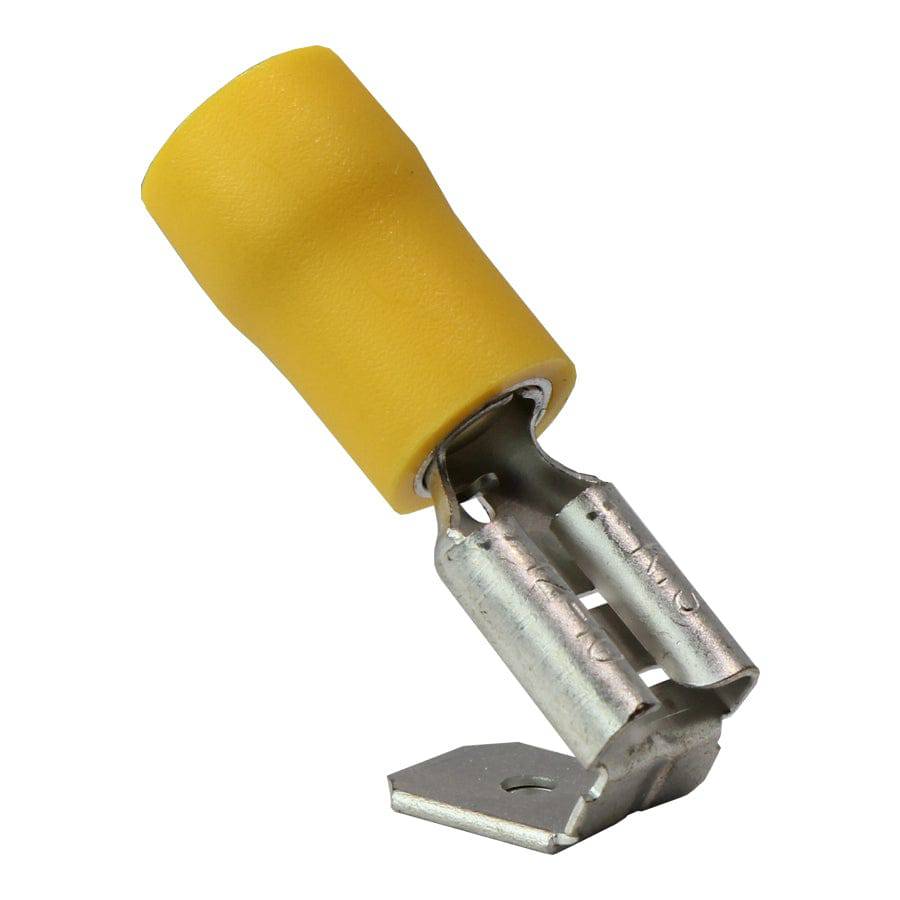

Procurement reference model: PBDD5-250. Wire Size: 12-10 AWG; Color: Yellow; Insulation Material: Vinyl. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

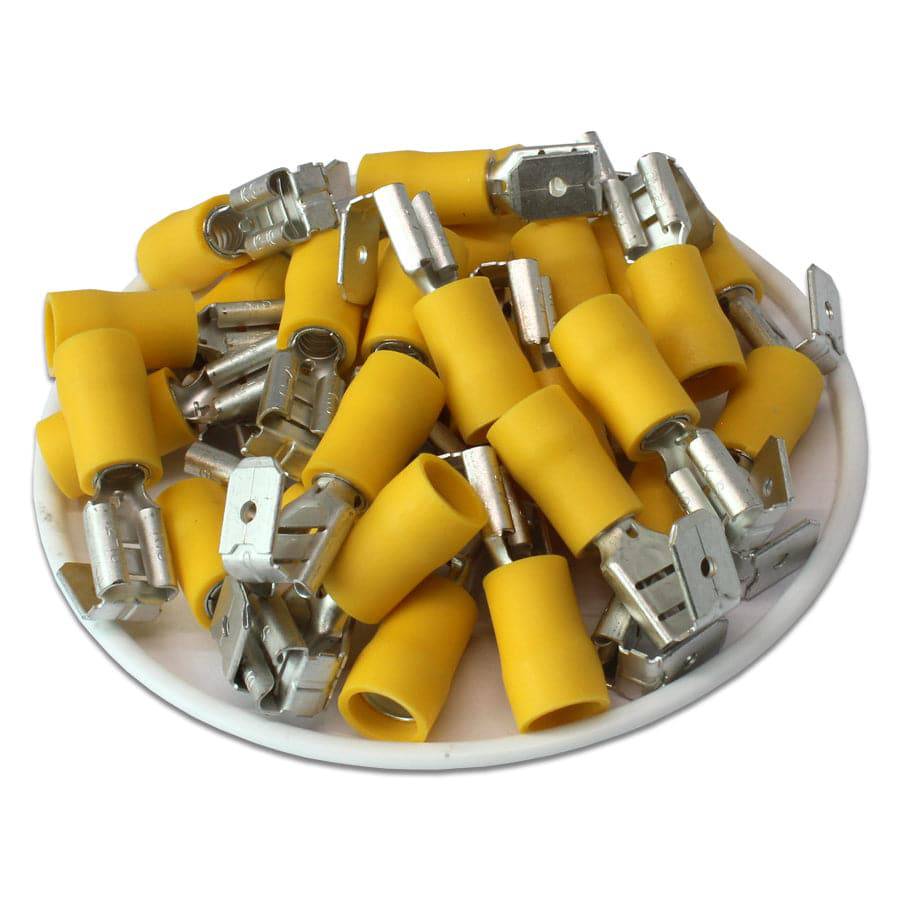

| Reference pack size | 100 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| Insulation Material | Vinyl |
| Terminal Material | Tin-Plated Brass |
| Nema Tab | 0.8mm x 6.35mm (0.032" x 0.250") |
| Max Electrical Rating | 105°C (221°F) - 600 Volts |
| Max Electrical Current | 24A |
| T | 0.04mm (.02") |
| L | 24mm (.95") |
| F | 8mm (.32") |
| F1 | 8.2mm (.32") |
| W | 6.6mm (.26") |
| D | 6.2mm (.24") |
| B | 13mm (.51") |
| W1 | 6.4mm (.25") |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
