Technical reference
Procurement reference model: PNT22. Wire Range: 4 AWG; L: 13.5mm (0.53"); D: 11.3mm (0.45"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Range | 4 AWG |

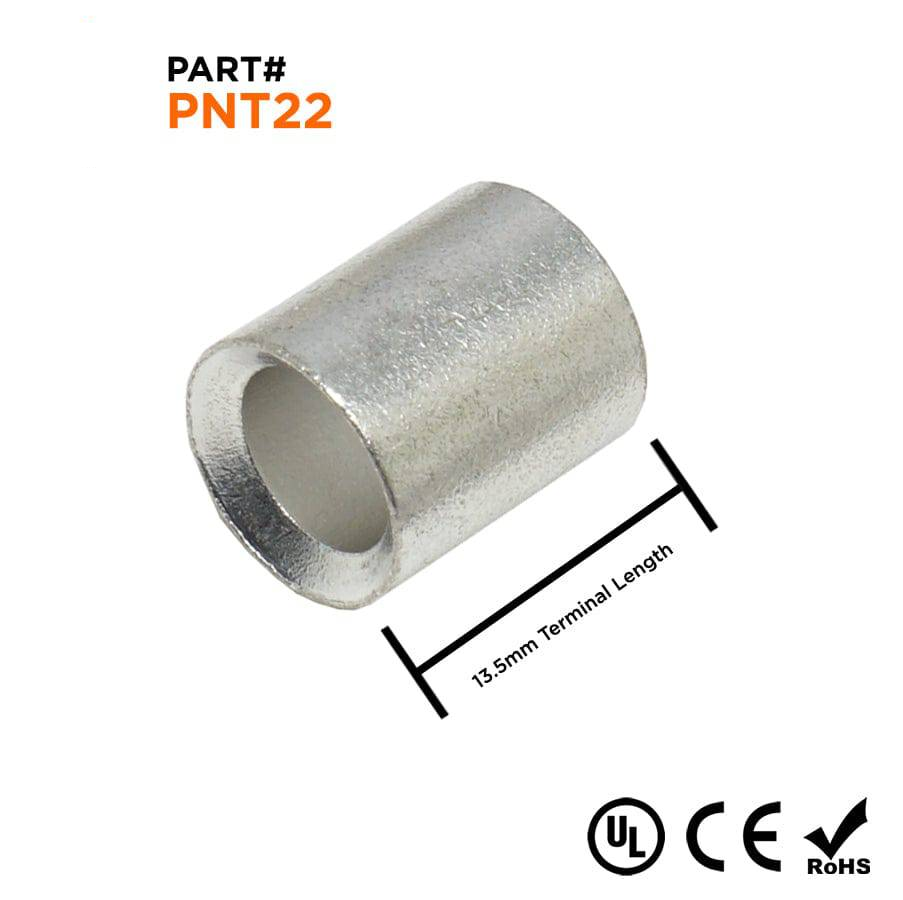

| L | 13.5mm (0.53") |
| D | 11.3mm (0.45") |
| D1 | 7.8mm (0.30") |
| Wall Thickness | 1.0mm (0.04") |
| Material | TKin-Plated Copper - Seamless |
| Configuration | Straight |
| Max Electrical Current | 125 AMP |
| UL Recognized | Yes |
| CE Cerified | Yes |
| RoHS Compliant | Yes |
