Technical reference

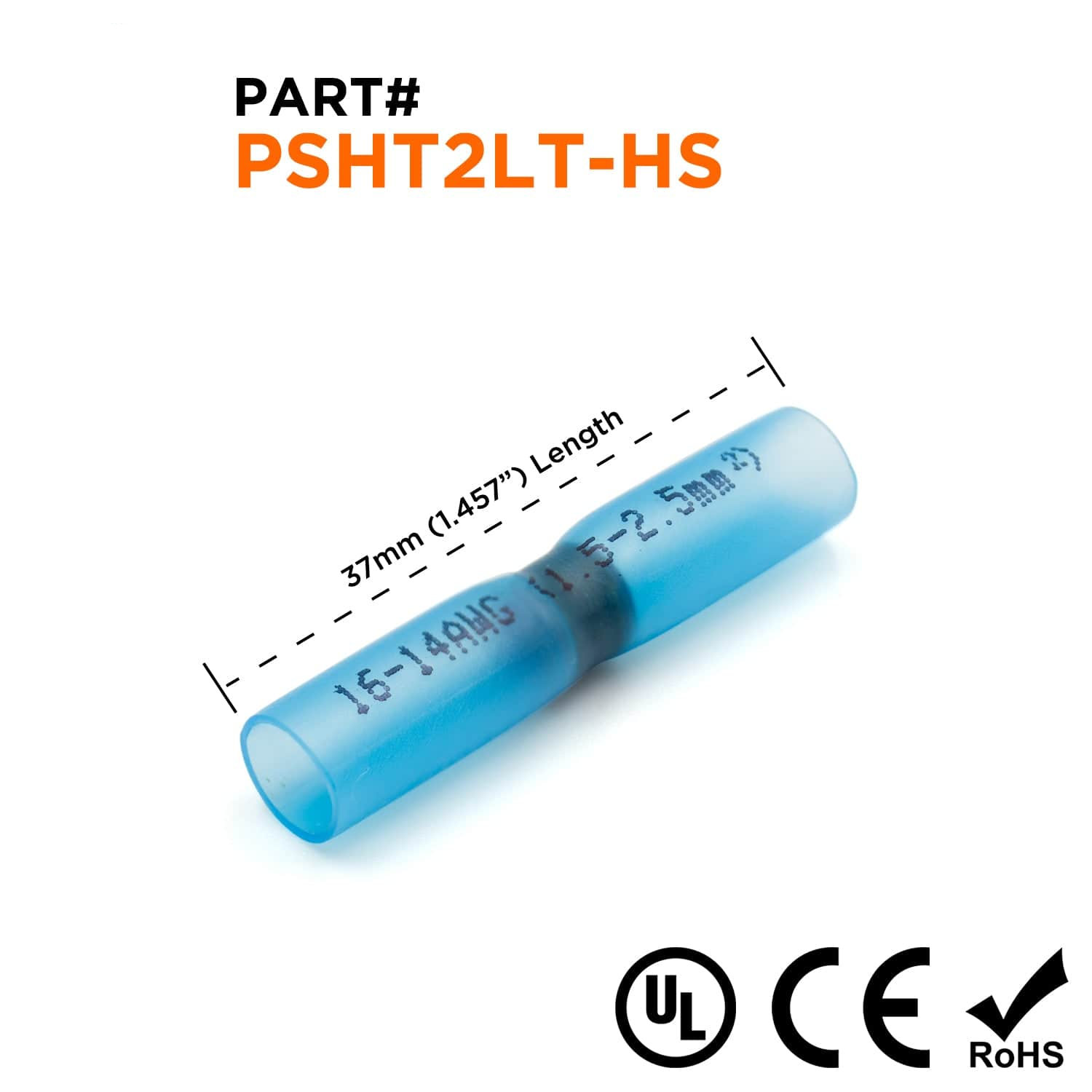

Procurement reference model: PSHT2LT-HS. Wire Size: 16-14 AWG; Color: Blue; L: 37mm (1.45"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| L | 37mm (1.45") |
| D2 | 4.7mm (0.18") |
| Barrel | Seamless |
| Configuration | Parallel |
| Solder Ring Material | Low Temperature Tin Alloy |
| Insulation Material | Polyethylene |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Electrical Current | 30 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

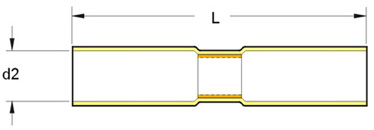

Drawings and product details
