Technical reference

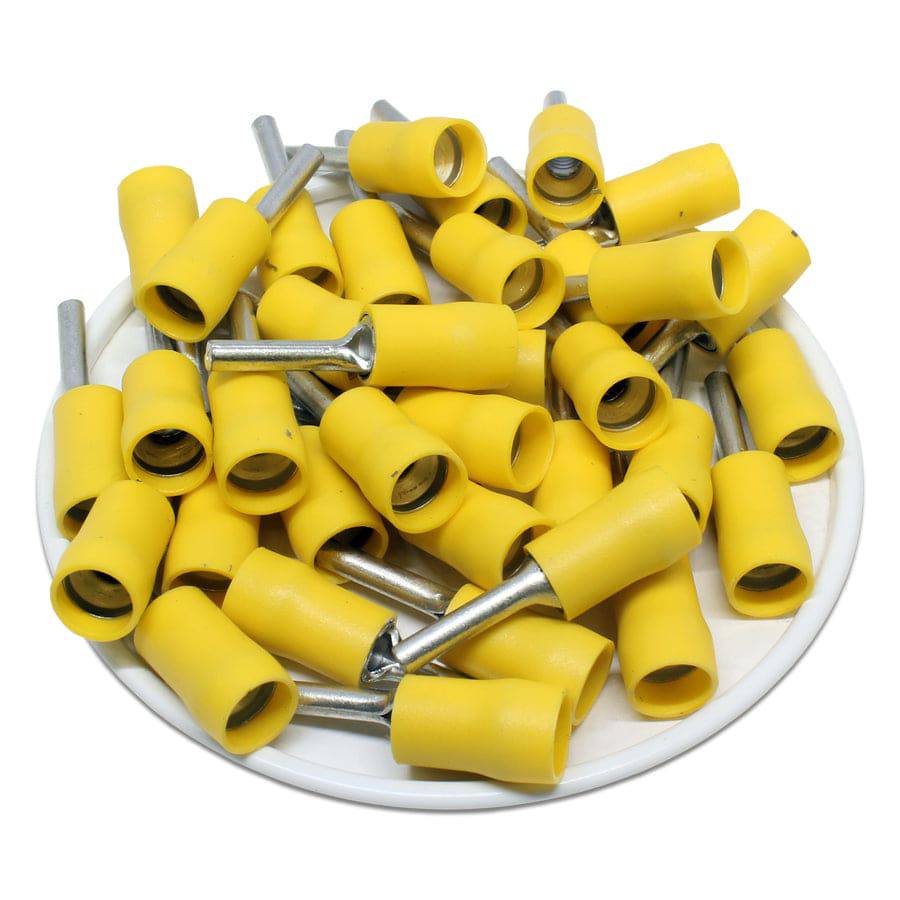

Procurement reference model: PTD5-13. Wire Size: 12-10 AWG; Color: Yellow; Terminal Insulation: Vinyl. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Color | Yellow |
| Terminal Insulation | Vinyl |
| Terminal Material | Tin-Plated Copper |
| T | 1.0mm (0.04") |
| L | 27.0mm (1.06") |
| F | 14.0mm (0.55") |
| E | 13.0mm (0.51") |
| W | 2.8mm (0.11") |
| D | 6.4mm (0.25") |
| D1 | 3.4mm (0.13") |
| Max Temperature Rating | 105 o C |
| Max Voltage Rating | 600 Volts |
| Max Electrical Current | 50AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
