Technical reference

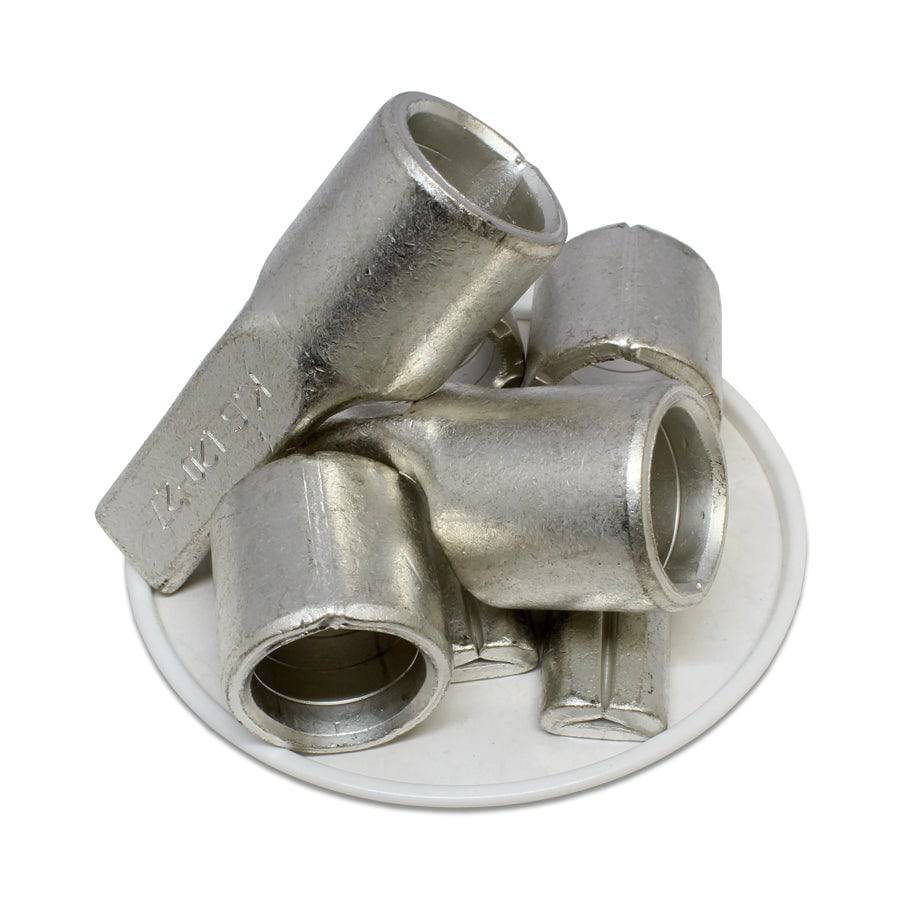

Procurement reference model: PTNB120-27. Wire Size: 4/0 AWG; Pin Length: 1 7/16"; T: 6.2mm (0.20"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Size | 4/0 AWG |
| Pin Length | 1 7/16" |
| T | 6.2mm (0.20") |
| L | 58mm (2.3") |
| F | 27mm (1.1") |
| E | 22mm (0.87") |
| W | 14mm (0.55") |
| D | 22.5mm (0.89") |
| D1 | 16.5mm (0.65") |
| Seam | Brazed |
| Terminal Material | Tin-Plated Copper |
| Max Electrical Rating | 105°C - 600 Volts |
| Max Amp Rating | 400A |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
