Technical reference

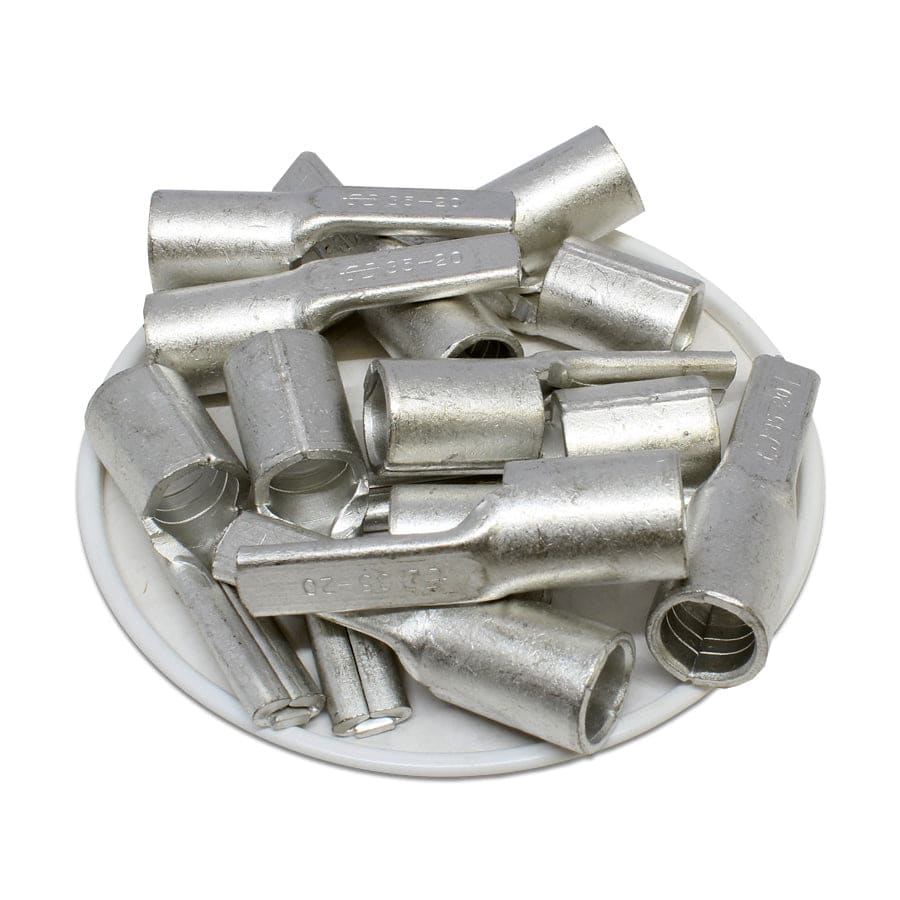

Procurement reference model: PTNB35-20. Wire Size: 2 AWG; Seam: Brazed; Pin Length: 15/16". Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 2 AWG |
| Seam | Brazed |
| Pin Length | 15/16" |
| Material | Tin-Plated Copper |
| T | 1.5mm (0.06") |
| L | 40.5mm (1.60") |
| F | 24.5mm (0.97") |
| E | 16.0mm (0.63") |
| W | 8.0mm (0.32") |
| D | 11.8mm (0.47") |
| D1 | 8.4mm (0.33") |
| Maxed Electrical Current | 170AMP |
| UL Approved | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
