Technical reference

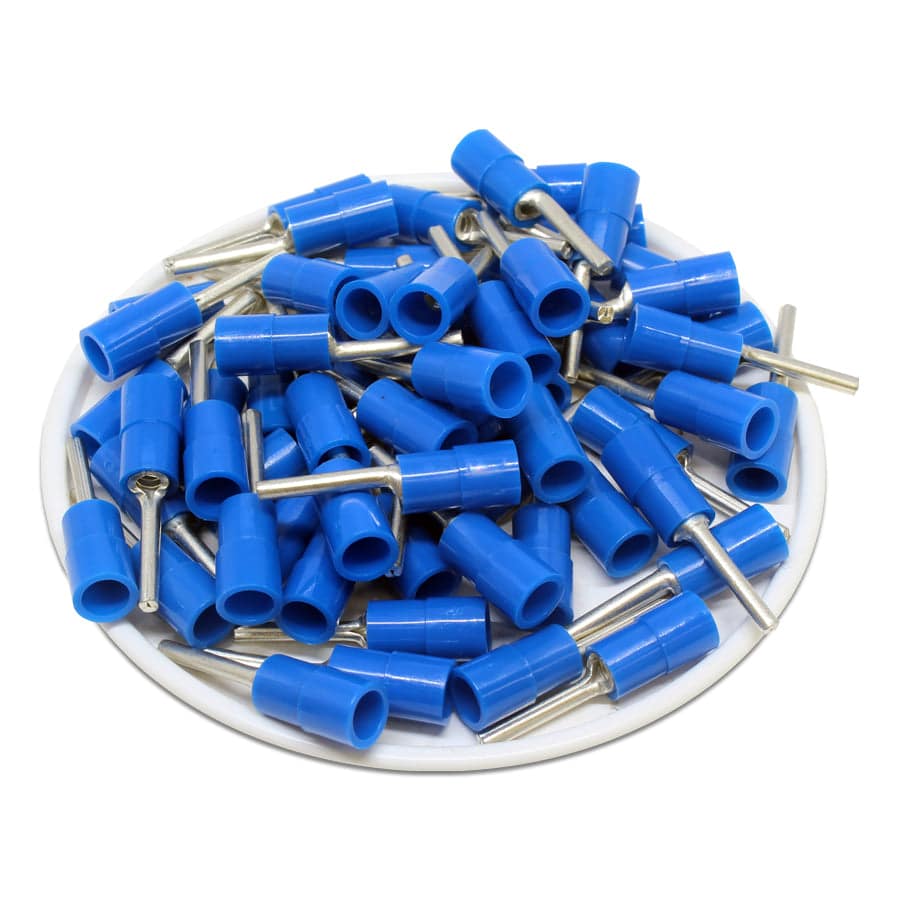

Procurement reference model: PTNYB2-13. Wire Size: 16-14 AWG; Color: Blue; Terminal Insulation: Nylon. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 16-14 AWG |
| Color | Blue |
| Terminal Insulation | Nylon |
| Terminal Material | Tin-Plated Copper |
| T | 0.8mm (0.03") |
| L | 23.8mm (0.94") |
| F | 13.0mm (0.51") |
| E | 11mm (0.43") |
| W | 1.9mm (0.07") |
| D | 5.2mm (0.21") |
| D1 | 2.3mm (0.09") |
| Max Temperature Rating | 105 o C |
| Max Voltage Rating | 600 Volts |
| Max Electrical Current | 30AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
