Technical reference

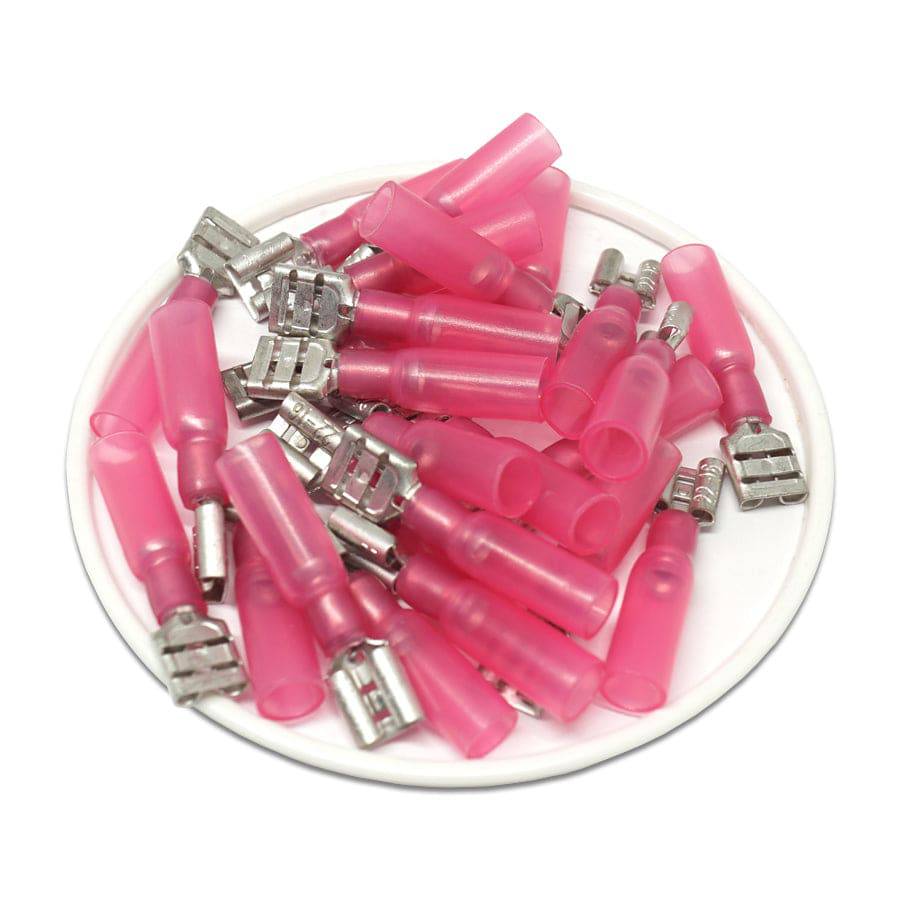

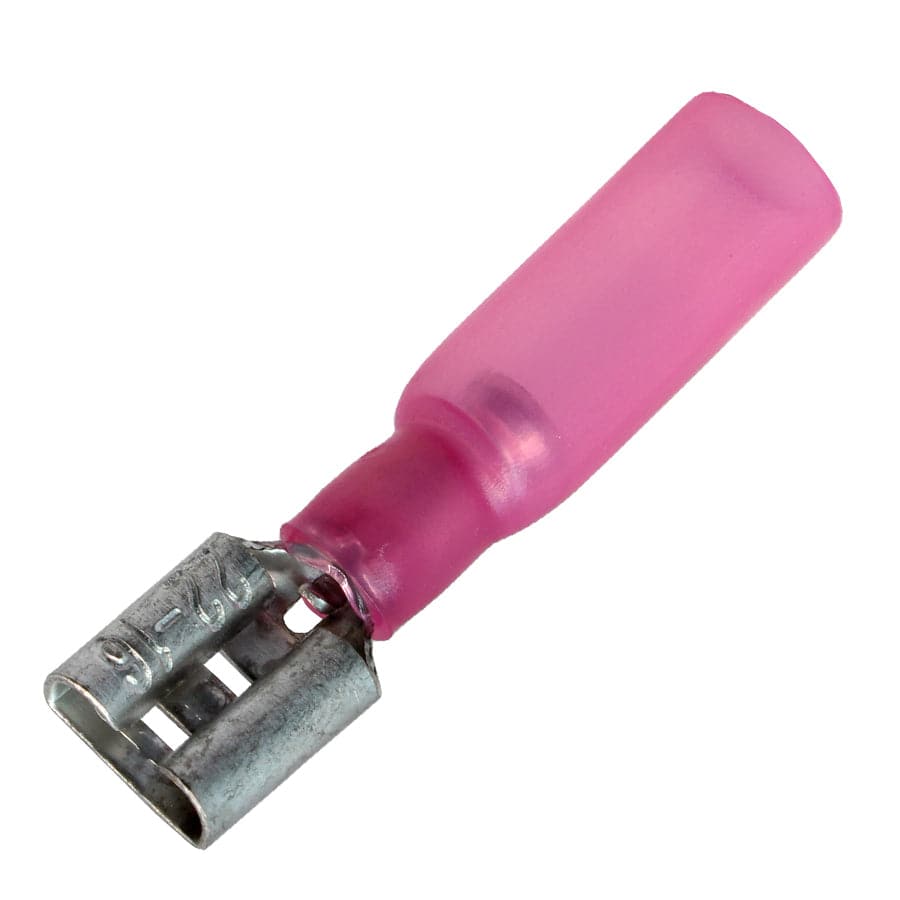

Procurement reference model: QDSF100-63. Wire Size: 22 to 16 AWG; Nema Tab: 0.248" (6.3mm); Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 22 to 16 AWG |
| Nema Tab | 0.248" (6.3mm) |
| Color | Red |
| Temperature Rating | -67 o F to 221 o F (-55 o C to 128 o C) |
| Heat Shrink Insulation | Polyolefin |
| Terminal Material | Tin-Plated Copper |
| D | 4.8mm (0.19") |
| D1 | 1.6mm (0.06") |
| B | 6.6mm (0.26") |
| E | 21.0mm (0.83") |
| L | 30.0mm (1.18") |
Drawings and product details
