Technical reference
Procurement reference model: RD07508. Wire Size: 20 AWG (0.75mm2); Color: Gray; Pin Length: 8mm (0.31"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 5000 · source pack reference |
| Wire Size | 20 AWG (0.75mm2) |
| Color | Gray |
| Pin Length | 8mm (0.31") |
| Material | Tin Plated Copper & Polypropylene |
| L1 | 14.0mm (0.551") |
| L2 | 8.0mm (0.315") |
| D | 1.57mm (0.062") |
| D1 | 1.2mm (0.047") |
| D2 | 2.8mm (0.110") |
| CE Certfied | Yes |
| RoHS Compliant | Yes |
| Max Temperature Rating | 221°F (105°C) |
| Max Electrical Rating | 600 Volts |
| Max Electrical Current | 17 AMP |
| Conductor size | 20 AWG (0.75mm²) |

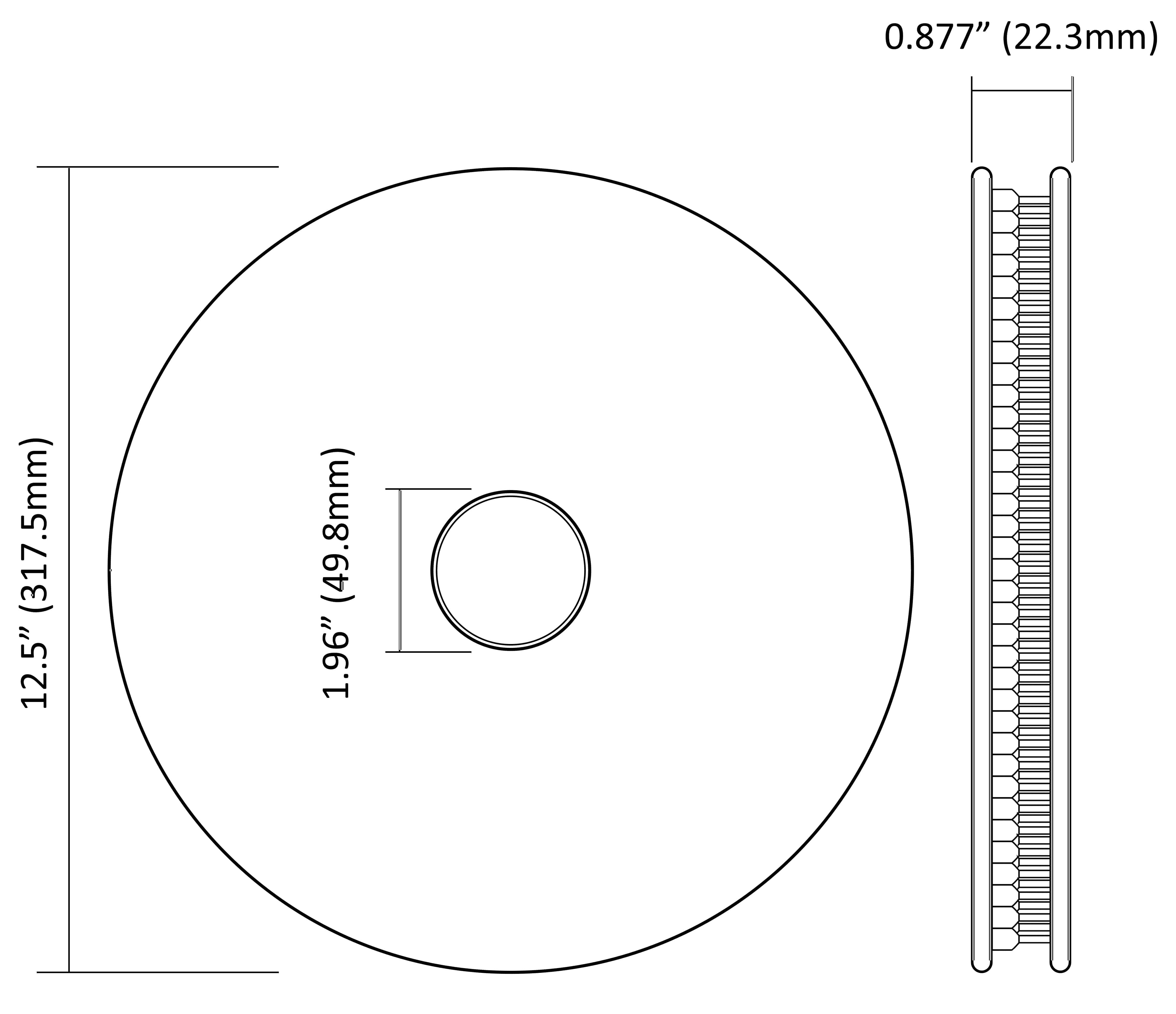

Drawings and product details
