Technical reference

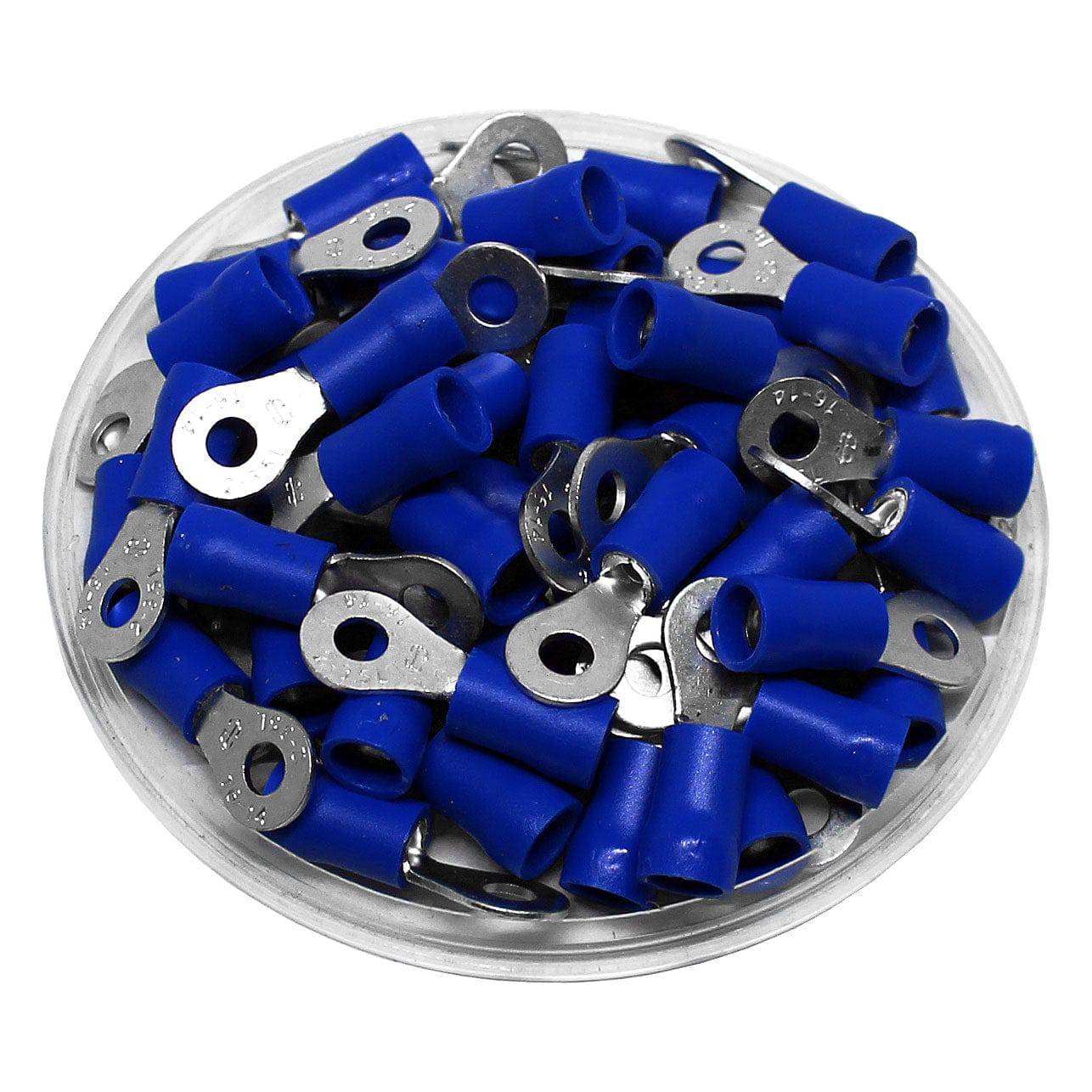

Procurement reference model: RDL2-37. Wire Size: 16-14 AWG; Stud Size: #6 Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | #6 Stud |
| Color | Blue |
| T | 0.8mm (.03") |
| L | 22.3mm (0.88") |
| F | 7.4mm (0.29") |
| E | 10.5mm (0.41") |
| W | 8.5mm (0.34") |
| D | 5.0mm (0.20") |
| D1 | 2.3mm (.10") |
| D2 | 3.7mm (.15) |
| Terminal Insulation | Vinyl |
| Terminal Material | Tin-Plated Copper |
| Max Voltage Rating | 105°C - 600 Volts |
| Max Electrical Current | 30AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
