Technical reference

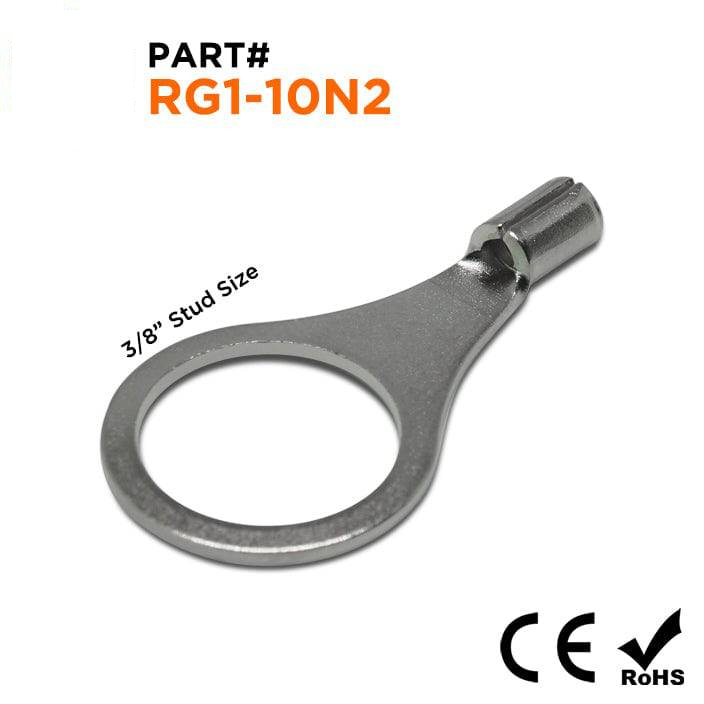

Procurement reference model: RG1-10N2. Wire Range: 22 to 16 AWG; Stud Size: 3/8" Stud; T: 0.8mm (0.03"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22 to 16 AWG |
| Stud Size | 3/8" Stud |
| T | 0.8mm (0.03") |
| L | 25.7mm (1.011 " ) |
| F | 13.9mm (0.547 " ) |
| E | 5.0mm (0.196 " ) |
| W | 13.6mm (0.535 " ) |
| D | 3.4mm (0.13 3" ) |
| D1 | 1.6mm (0. 062" ) |
| D2 | 10.5mm (0.413 " ) |
| Terminal Material | Steel |
| Surface Treatment | Nickel Plated |
| Temperature Rating | 900°F (482°C) |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
