Technical reference

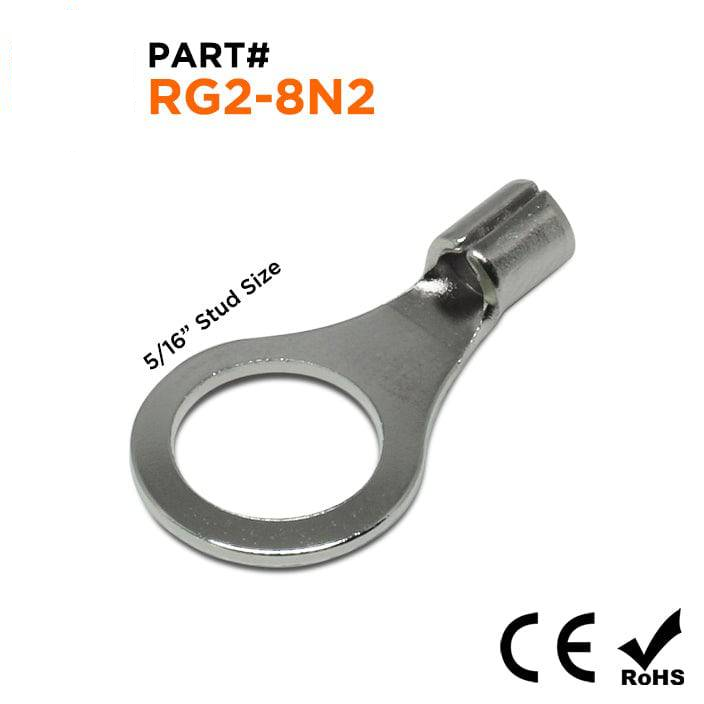

Procurement reference model: RG2-8N2. Wire Range: 16-14 AWG; Stud Size: 5/16" Stud; T: 0.8mm (0.03"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| Stud Size | 5/16" Stud |
| T | 0.8mm (0.03") |
| L | 22.0mm (0.866 " ) |
| F | 7.3mm (0.287 " ) |
| E | 11.0mm (0.433 " ) |
| W | 12.0mm (0.472 " ) |
| D | 4.1mm (0.161 " ) |
| D1 | 2.3mm (0.091 " ) |
| D2 | 8.4mm (0.330 " ) |
| Terminal Material | Steel |
| Surface Treatment | Nickel Plated |
| Temperature Rating | 482°C - 600 Volts |
| Max Electrical Rating | 30 AMP |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
