Technical reference

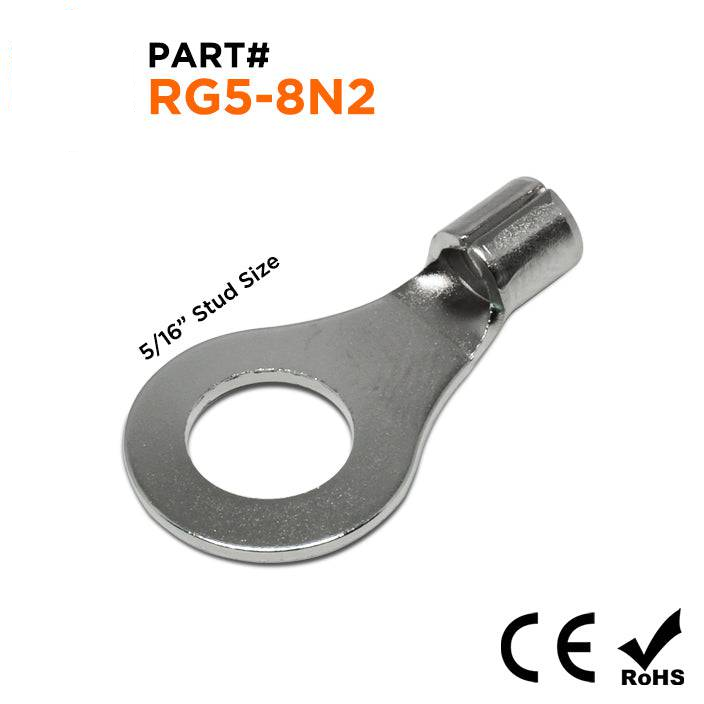

Procurement reference model: RG5-8N2. Wire Range: 12-10 AWG; Stud Size: 5/16" Stud; T: 1.0mm (0.039"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 12-10 AWG |
| Stud Size | 5/16" Stud |
| T | 1.0mm (0.039") |
| L | 27.2mm (1.071 " ) |
| F | 13.7mm (0.539 " ) |
| E | 6.0mm (0.236 " ) |
| W | 15.0mm (0.591 " ) |
| D | 5.6mm (0.220 " ) |
| D1 | 3.4mm (0.134 " ) |
| D2 | 8.4mm (0.330 " ) |
| Terminal Material | Steel |
| Surface Treatment | Nickel Plated |
| Temperature Rating | 482°C - 600 Volts |
| Max Electrical Rating | 50 AMP |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
