Technical reference

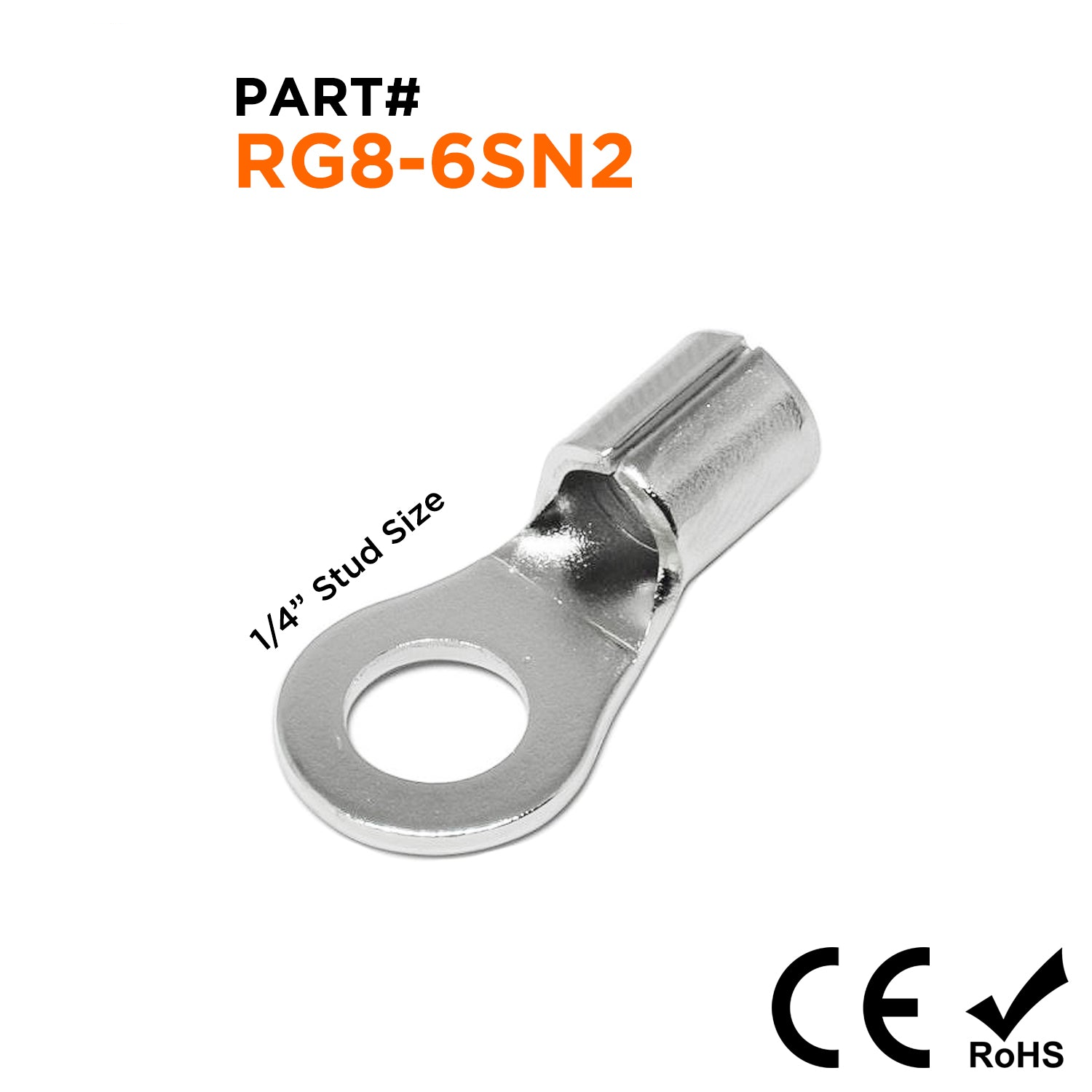

Procurement reference model: RG8-6SN2. Wire Range: 8 AWG; Stud Size: 1/4" Stud; T: 1.2mm (0.047"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Range | 8 AWG |
| Stud Size | 1/4" Stud |
| T | 1.2mm (0.047") |
| L | 23.5mm (0.925 " ) |
| F | 9.7mm (0.382 " ) |
| E | 8.5mm (0.335 " ) |
| W | 12.0mm (0.472 " ) |
| D | 7.1mm (0.280 " ) |
| D1 | 4.5mm (0.177 " ) |
| D2 | 6.5mm (0.255 " ) |
| Terminal Material | Steel |
| Surface Treatment | Nickel Plated |
| Temperature Rating | 900°F - 600 Volts |
| Max Electrical Rating | 70 AMP |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |

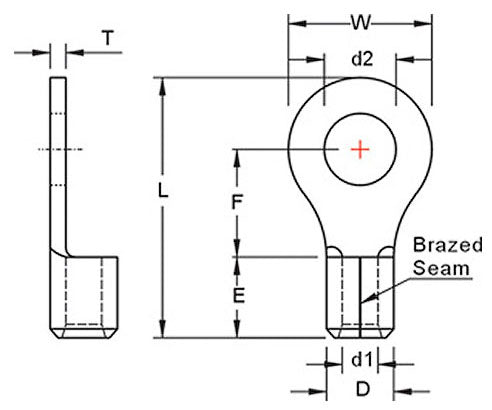

Drawings and product details
