Technical reference

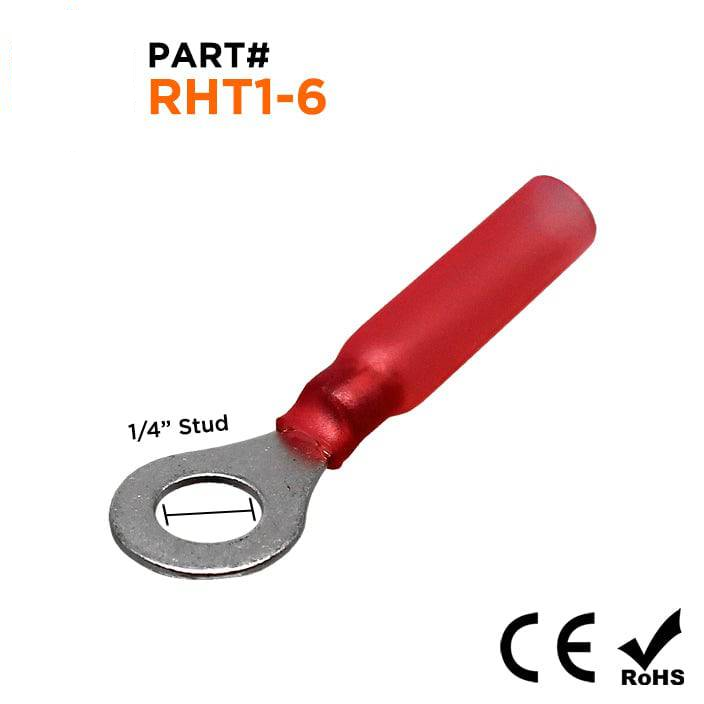

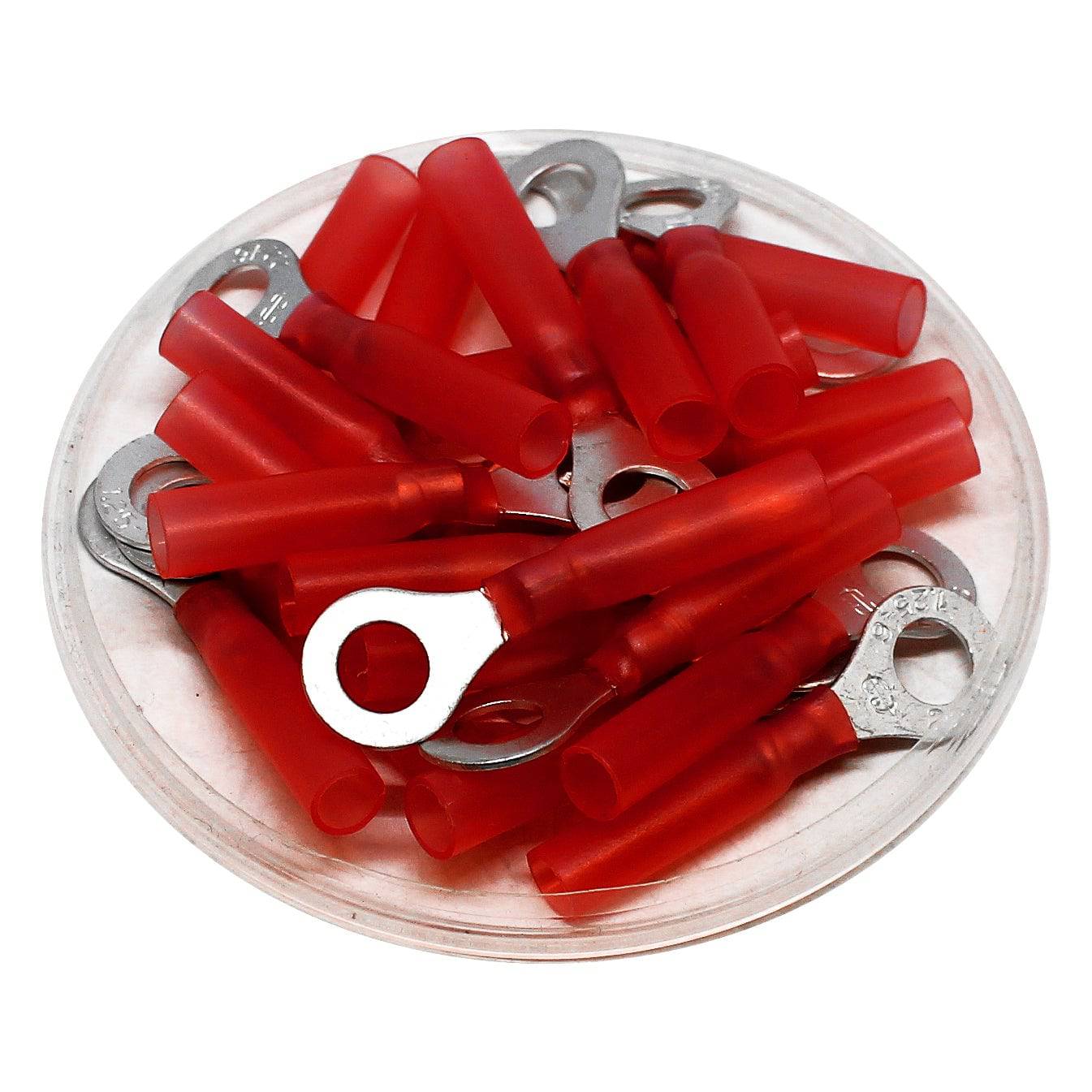

Procurement reference model: RHT1-6. Wire Size: 22 to 16 AWG; Stud Size: 1/4" Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 22 to 16 AWG |
| Stud Size | 1/4" Stud |
| Color | Red |
| L | 34.3mm (1.35") |
| D2 | 6.4mm (0.25") |
| W | 11.6mm (0.46") |
| Material | Tin Plated Copper |
| Insulation | Polyethylene |
| Max Electrical Rating | 600 Volts |
| Temperature Rating | -67°F to 221°F (-55°C to 105°C) |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
