Technical reference

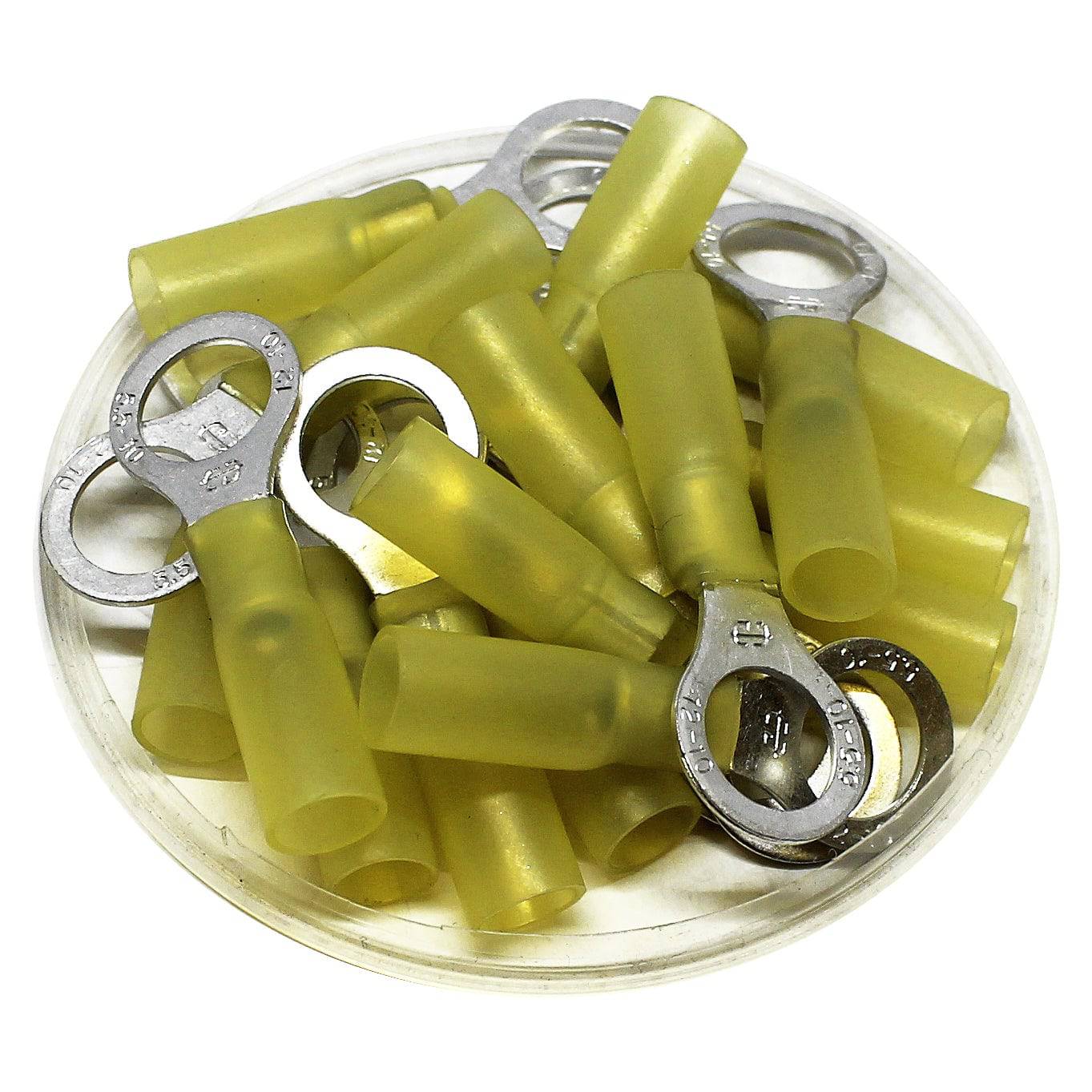

Procurement reference model: RHT5-10. Wire Size: 12 to 10 AWG; Stud Size: 3/8" Stud; Color: Yellow. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Size | 12 to 10 AWG |
| Stud Size | 3/8" Stud |
| Color | Yellow |
| L | 42.2mm (1.66") |
| D2 | 10.5mm (0.41") |
| W | 15mm (0.59") |
| Material | Tin Plated Copper |
| Insulation | Polyethylene |
| Max Electrical Rating | 600 Volts |
| Temperature Rating | -67°F to 221°F (-55°C to 105°C) |
| CE Certified | Yes |
| RoHS Compliant | Yes |
