Technical reference

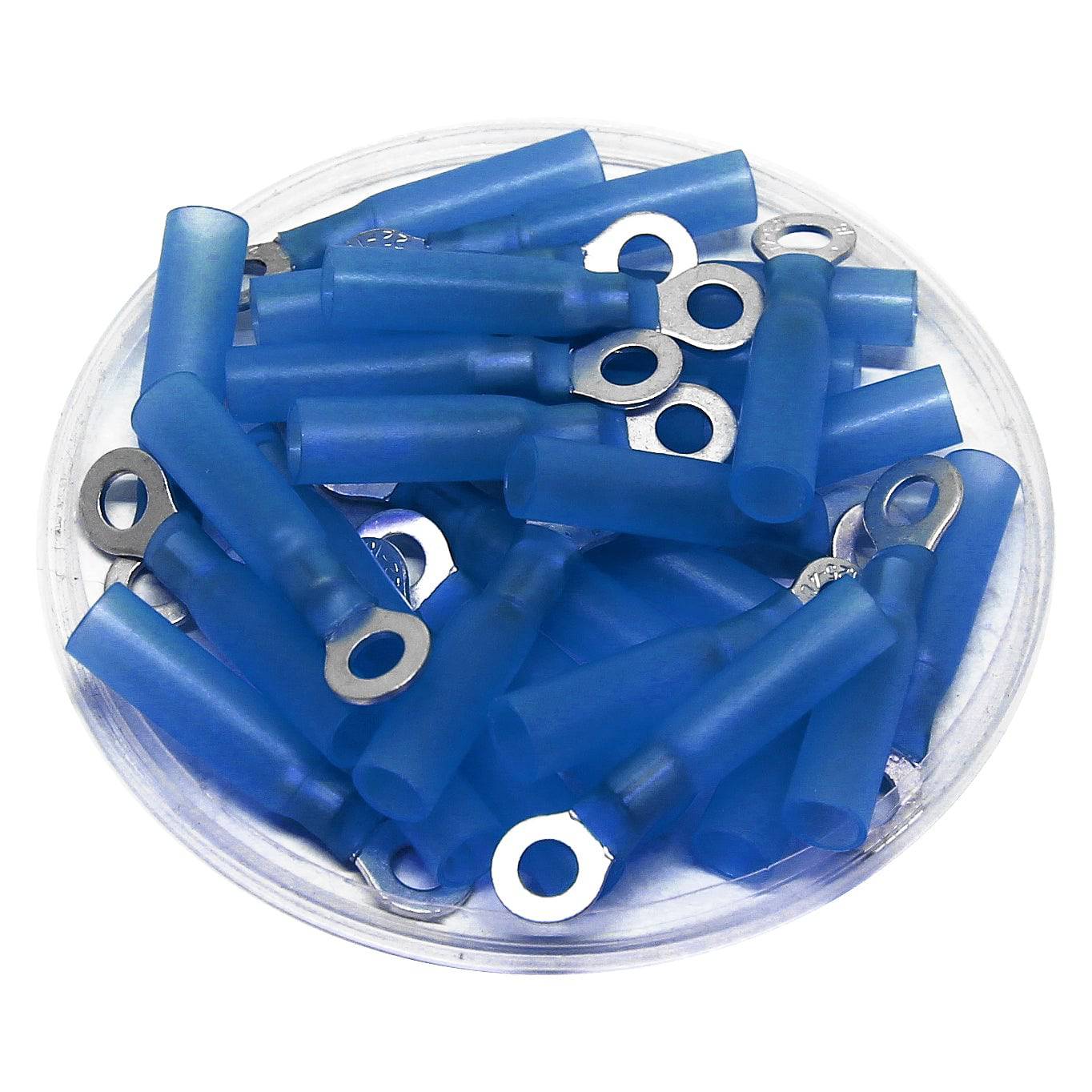

Procurement reference model: RHTL2-37. Wire Size: 16-14 AWG; Stud Size: #6 Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | #6 Stud |
| Color | Blue |
| L | 30.5mm (1.20") |
| D2 | 3.7mm (0.15") |
| W | 8.5mm (0.34") |
| Material | Tin Plated Copper |
| Insulation | Polyethylene |
| Max Electrical Rating | 600 Volts |
| Temperature Rating | -55°C to 105°C |
| Shrink Temperature | 180°C |
| CE Certified | Yes |
| RoHS Compliant | Yes |
