Technical reference

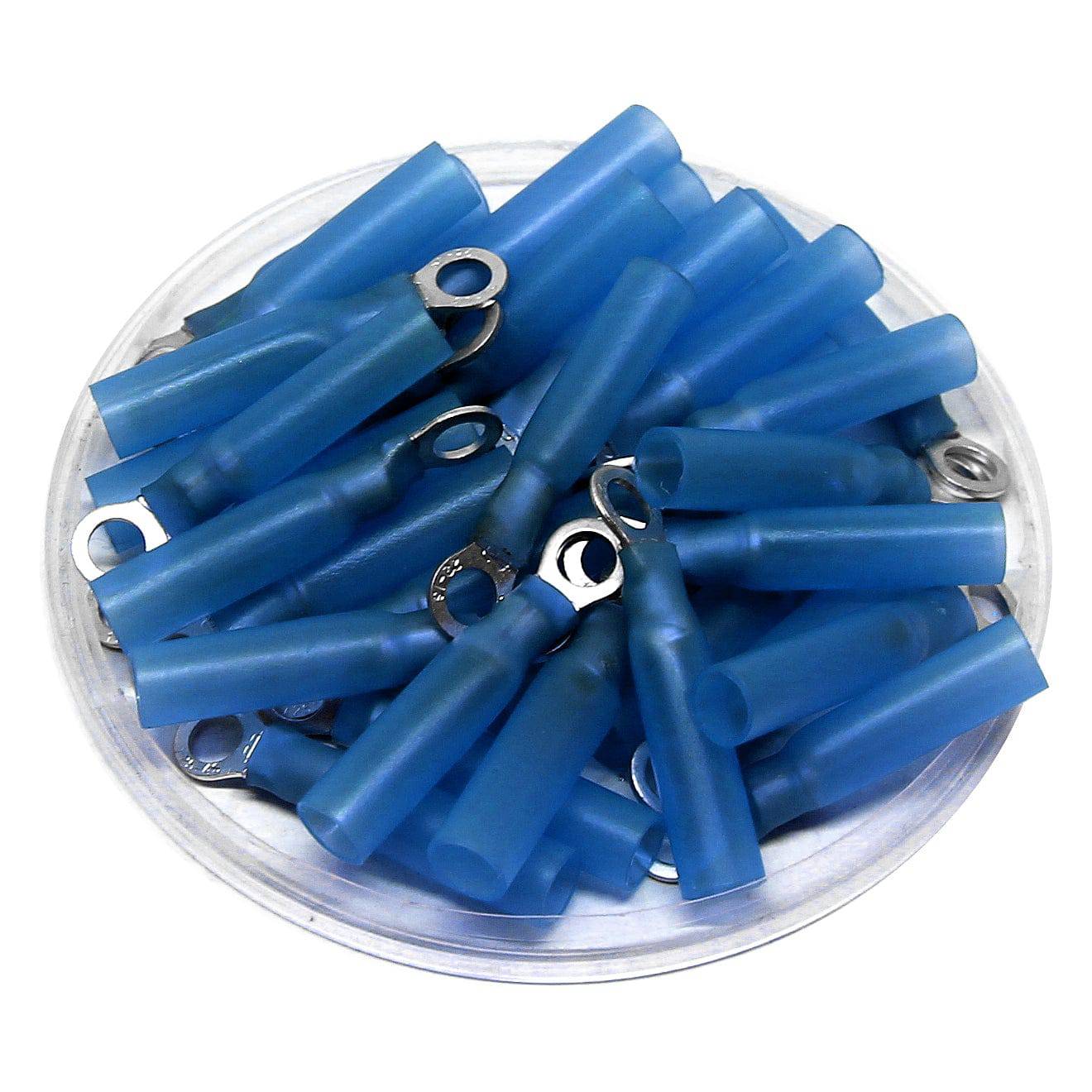

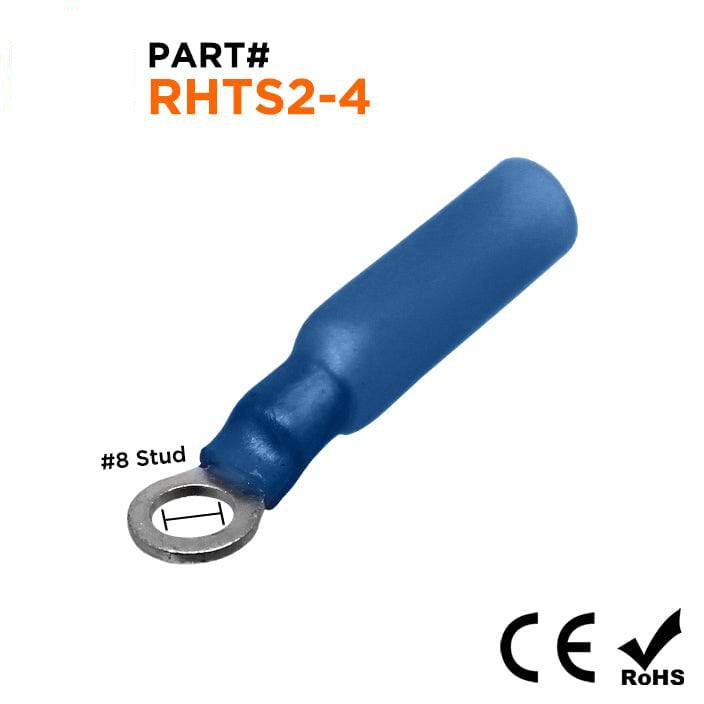

Procurement reference model: RHTS2-4. Wire Size: 16 to 14 AWG; Stud Size: #8 Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 16 to 14 AWG |
| Stud Size | #8 Stud |
| Color | Blue |
| L | 28.1mm (1.11") |
| D2 | 4.3mm (0.17") |
| W | 6.6mm (0.26") |
| Material | Tin Plated Copper |
| Insulation | Polyethylene |
| Max Electrical Rating | 600 Volts |
| Temperature Rating | -55°C to 105°C |
| CE Certified | Yes |
| RoHS Compliant | Yes |
