Technical reference

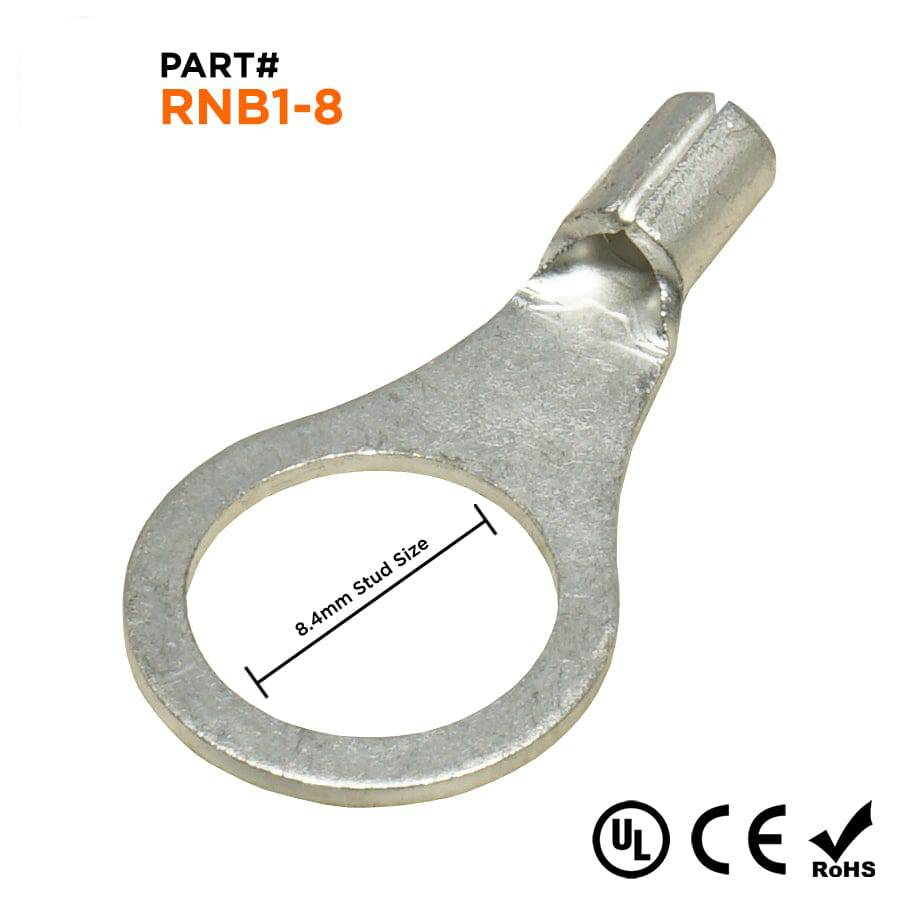

Procurement reference model: RNB1-8. Wire Range: 22-16 AWG; T: 0.03" (0.7mm); L: 0.85" (21.6mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

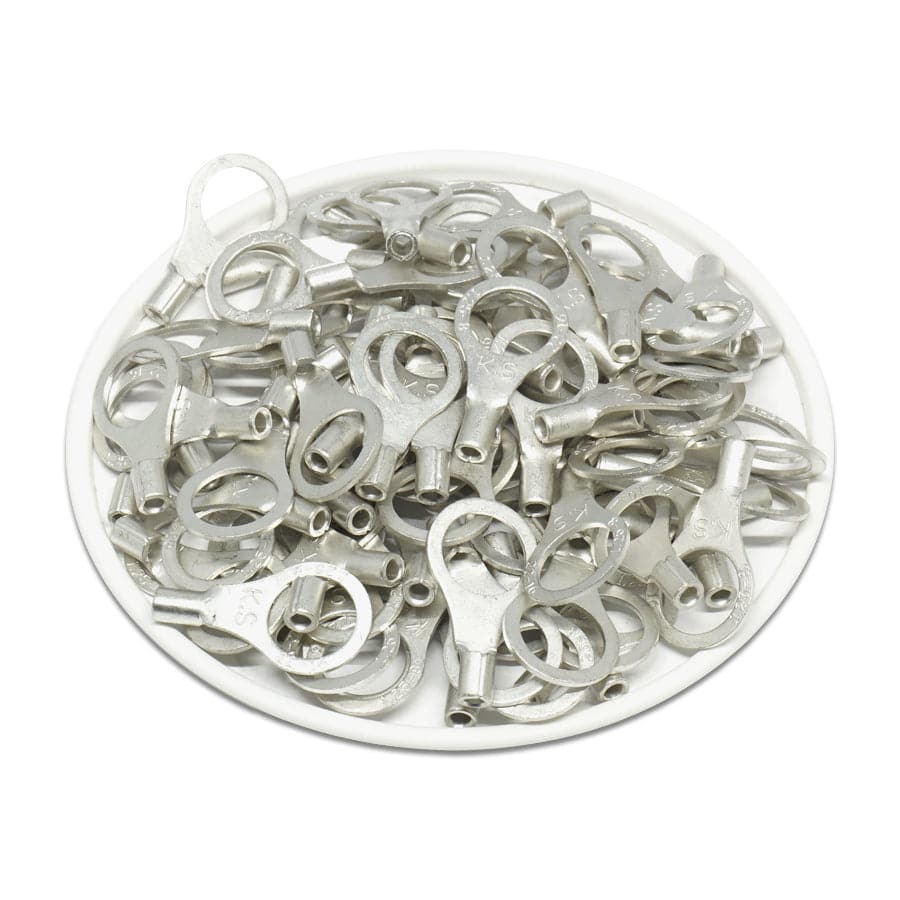

| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| T | 0.03" (0.7mm) |
| L | 0.85" (21.6mm) |
| F | 0.37" (9.5mm) |
| E | 0.19" (4.8mm) |
| W | 0.46" (11.6mm) |
| D | 0.13" (3.4mm) |
| D1 | 0.07" (1.7mm) |
| D2 | 0.33" (8.4mm) |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |
| Stud Size | 5/16" Stud |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 18 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
