Technical reference

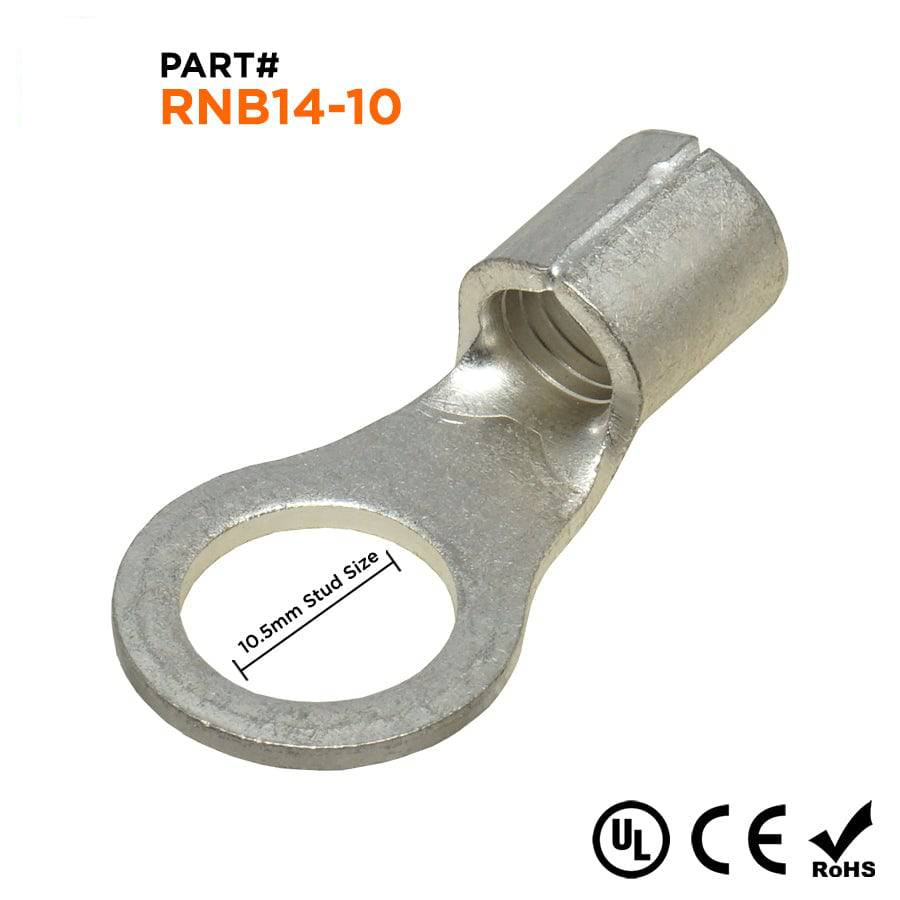

Procurement reference model: RNB14-10. Wire Range: 6 AWG; T: 0.06" (1.5mm); L: 1.3" (32.5mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

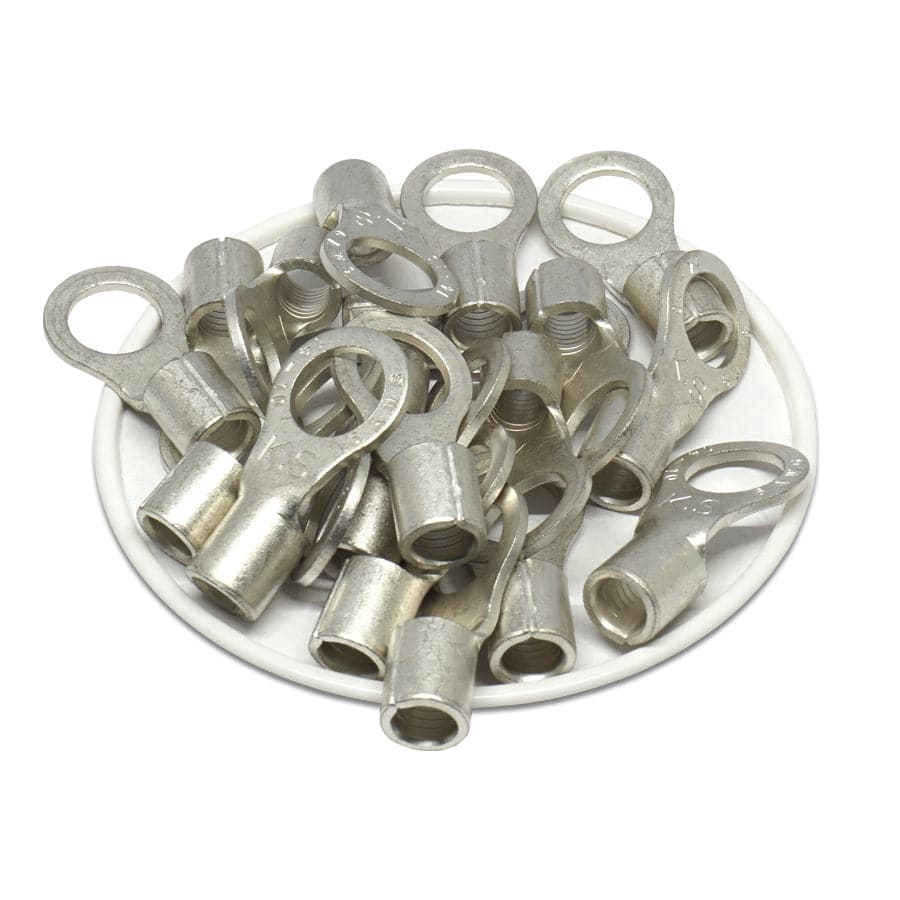

| Reference pack size | 25 · source pack reference |
| Wire Range | 6 AWG |
| T | 0.06" (1.5mm) |
| L | 1.3" (32.5mm) |
| F | 0.56" (14.2mm) |
| E | 0.41" (10.5mm) |
| W | 0.63" (16.0mm) |
| D | 0.35" (9.0mm) |
| D1 | 0.23" (5.8mm) |
| D2 | 0.41" (10.5mm) |
| Seam Style | Brazed |
| Terminal Material | Tin-Plated Copper |
| Stud Size | 3/8 Stud |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 95 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
