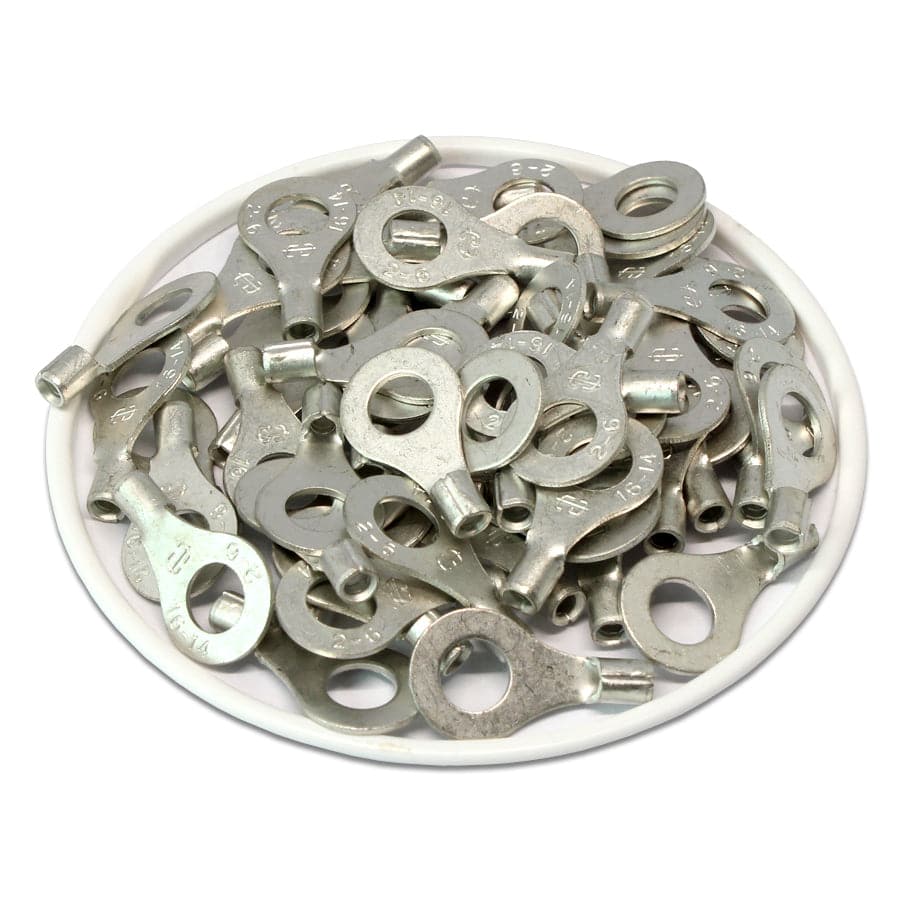

Procurement reference model: RNB2-6. Wire Range: 16-14 AWG; T: 0.03" (0.8mm); L: 0.85" (21.8mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| T | 0.03" (0.8mm) |
| L | 0.85" (21.8mm) |
| F | 0.43" (11.0mm) |
| E | 0.19" (4.8mm) |
| W | 0.47" (12.0mm) |
| D | 0.16" (4.1mm) |
| D1 | 0.09" (2.3mm) |
| D2 | 0.25" (6.4mm) |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |

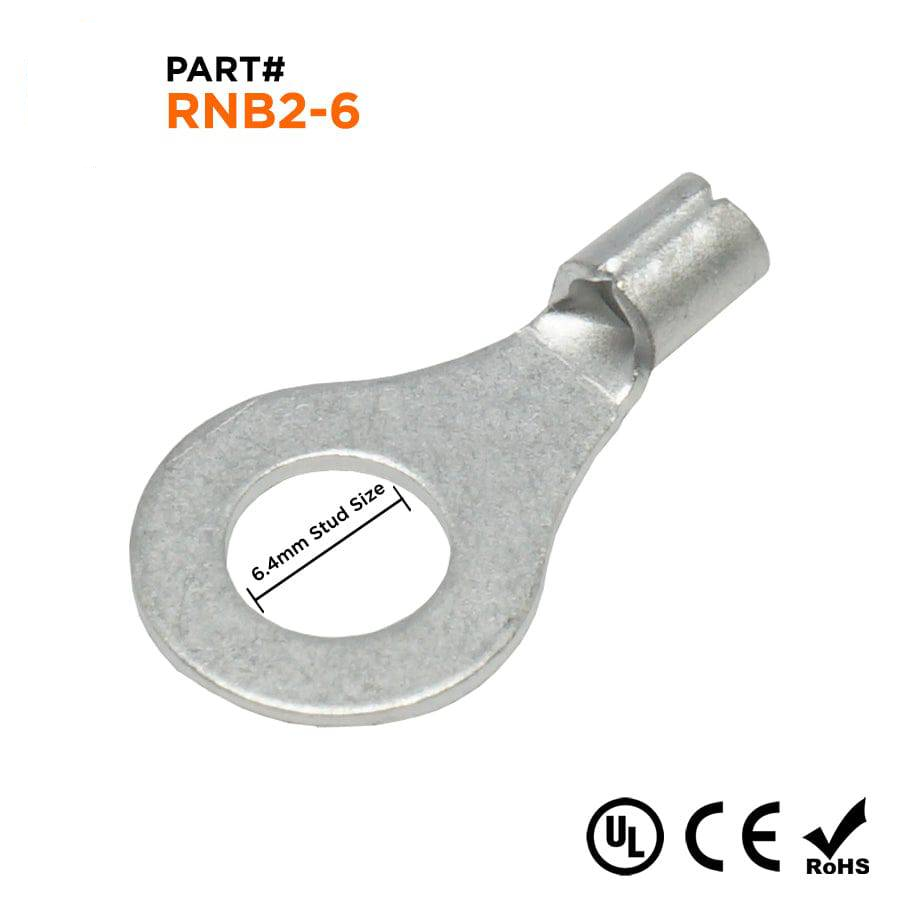

| Stud Size | 1/4" Stud |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 30 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
