Technical reference

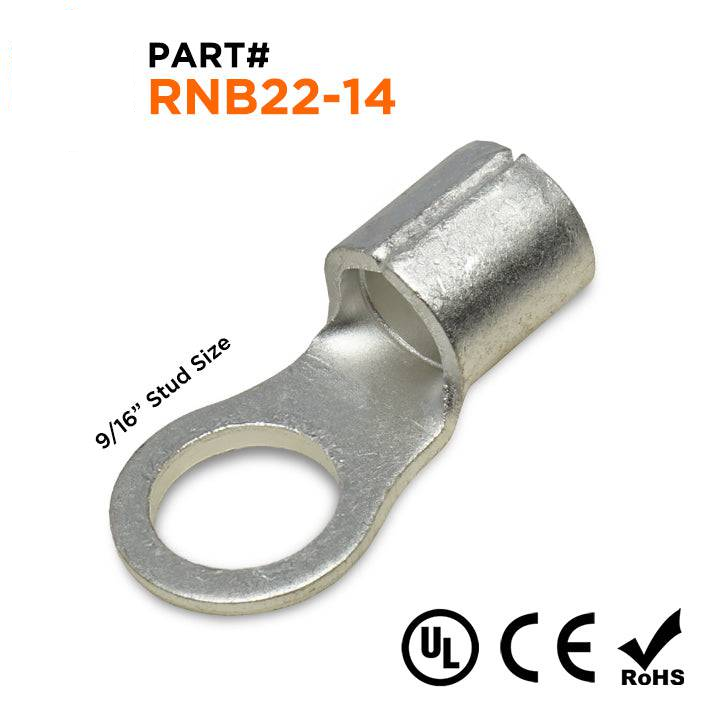

Procurement reference model: RNB22-14. Wire Range: 4 AWG; T: 0.067" (1.7mm); L: 2.008" (51.0mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Range | 4 AWG |
| T | 0.067" (1.7mm) |
| L | 2.008" (51.0mm) |
| F | 0.953" (24.2mm) |
| E | 0.472" (12.0mm) |
| W | 1.181" (30.0mm) |
| D | 0.453" (11.5mm) |
| D1 | 0.303" (7.7mm) |
| D2 | 0.591" (15mm) |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |
| Stud Size | 9/16" Stud |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 125 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
