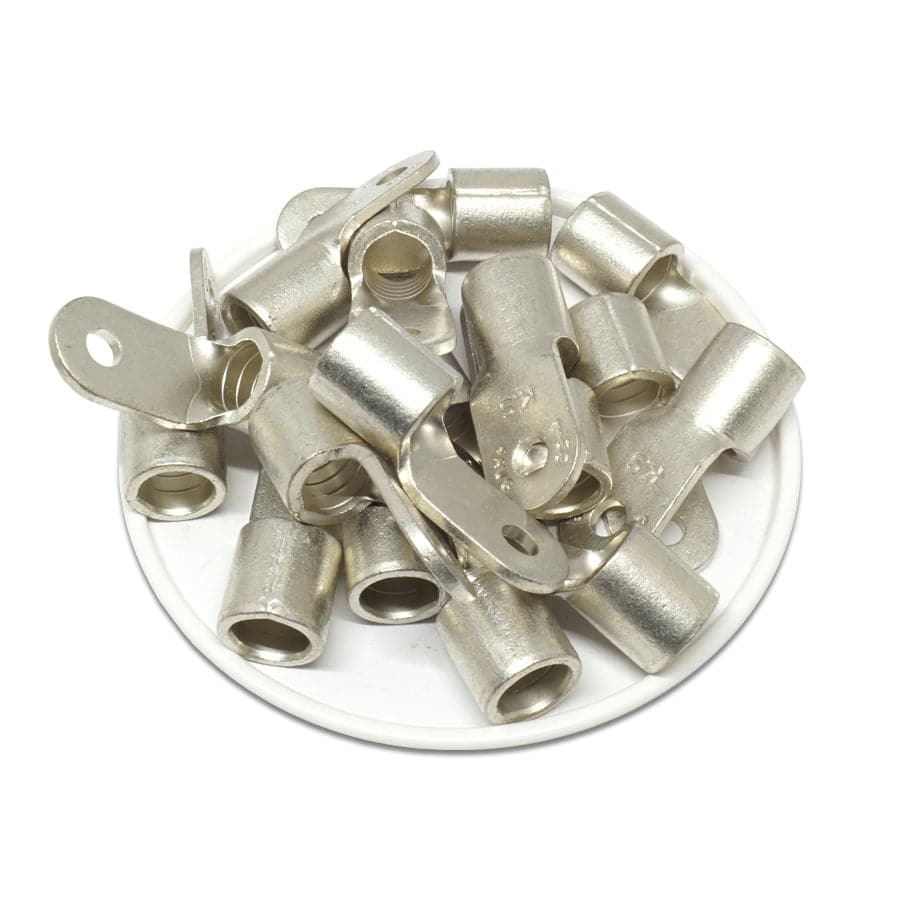

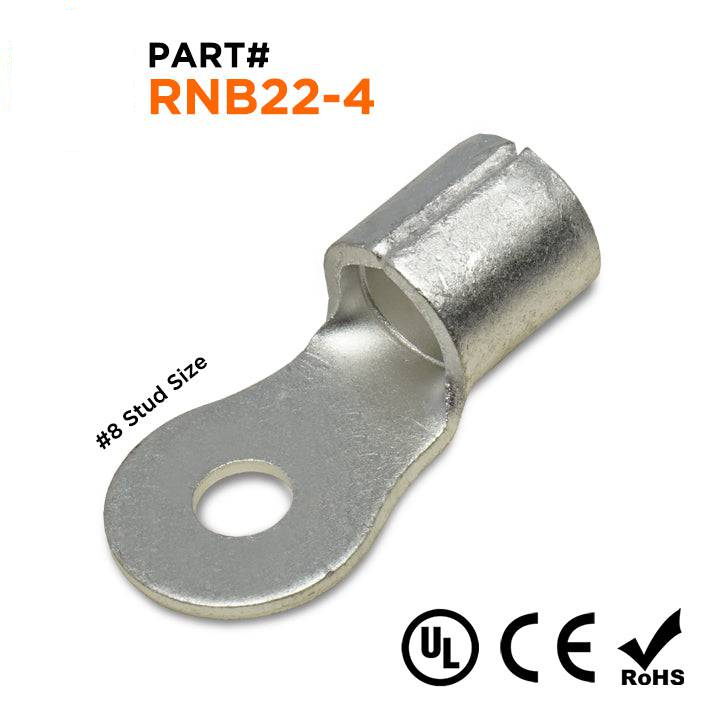

Procurement reference model: RNB22-4. Wire Size: 4 AWG; W: 12.2mm (0.48"); F: 15.1mm (0.59"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Size | 4 AWG |
| W | 12.2mm (0.48") |
| F | 15.1mm (0.59") |
| L | 33.2mm (1.31") |
| E | 12mm (0.47") |
| D | 11.5mm (0.45") |
| D1 | 7.7mm (0.30") |
| D2 | 4.3mm (0.17") |
| T | 1.7mm (0.06") |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |
| Stud Size | #8 Stud |
| Max Electrical Rating | 600 Volts (105 o C) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
