Technical reference

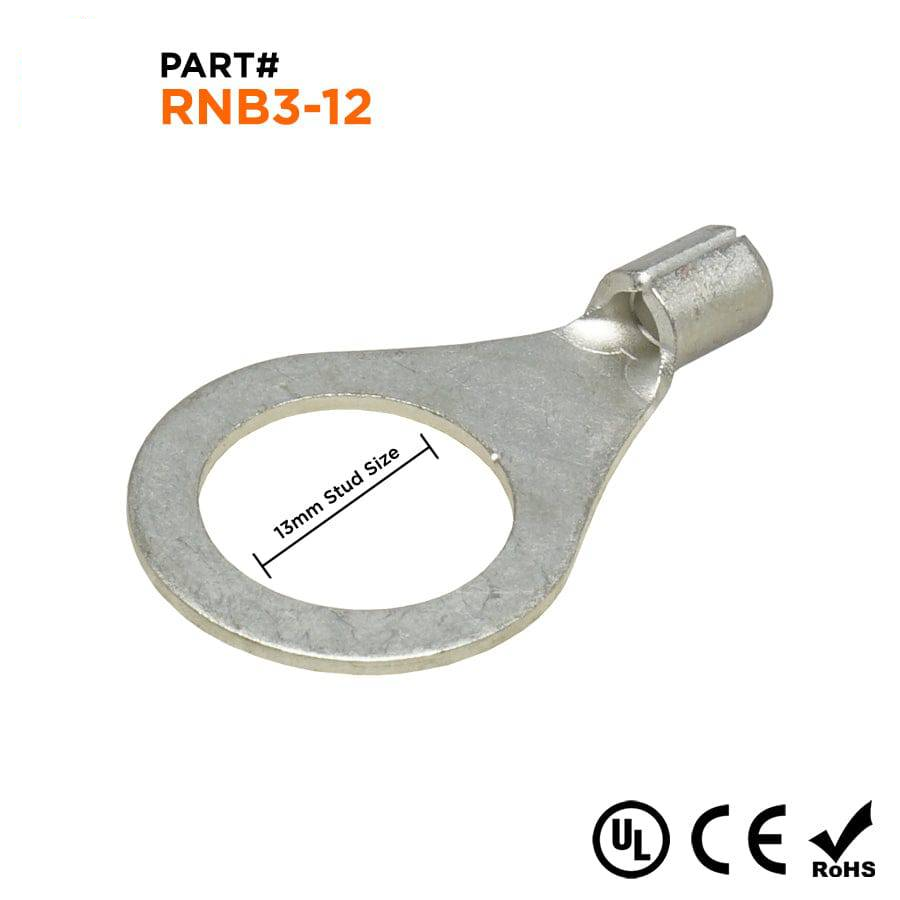

Procurement reference model: RNB3-12. Wire Range: 14-12 AWG; T: 0.04" (1.0mm); L: 1.20" (31.6mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

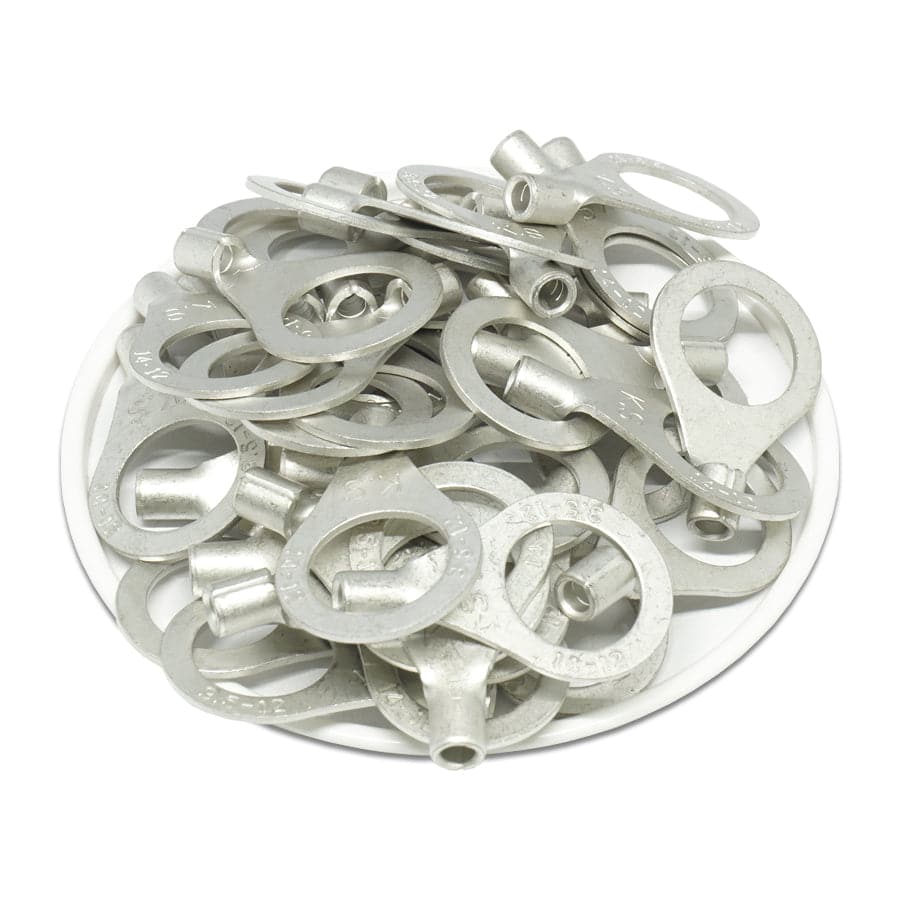

| Reference pack size | 100 · source pack reference |
| Wire Range | 14-12 AWG |
| T | 0.04" (1.0mm) |
| L | 1.20" (31.6mm) |
| F | 0.63" (16.0mm) |
| E | 0.24" (6.0mm) |
| W | 0.76" (19.2mm) |
| D | 0.20" (5.1mm) |
| D1 | 0.11" (2.9mm) |
| D2 | 0.51" (13.0mm) |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |
| Stud Size | 1/2" Stud |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 35 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
