Technical reference

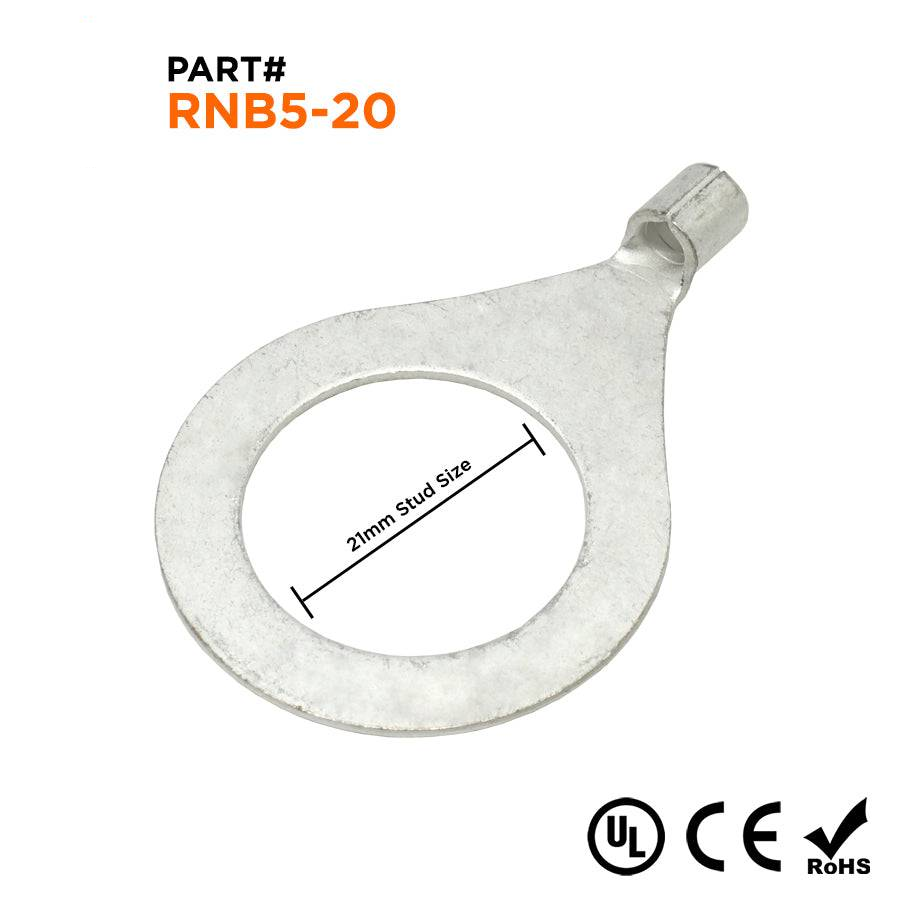

Procurement reference model: RNB5-20. Wire Range: 12-10 AWG; T: 0.04" (1.0mm); L: 1.9" (47.2mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|

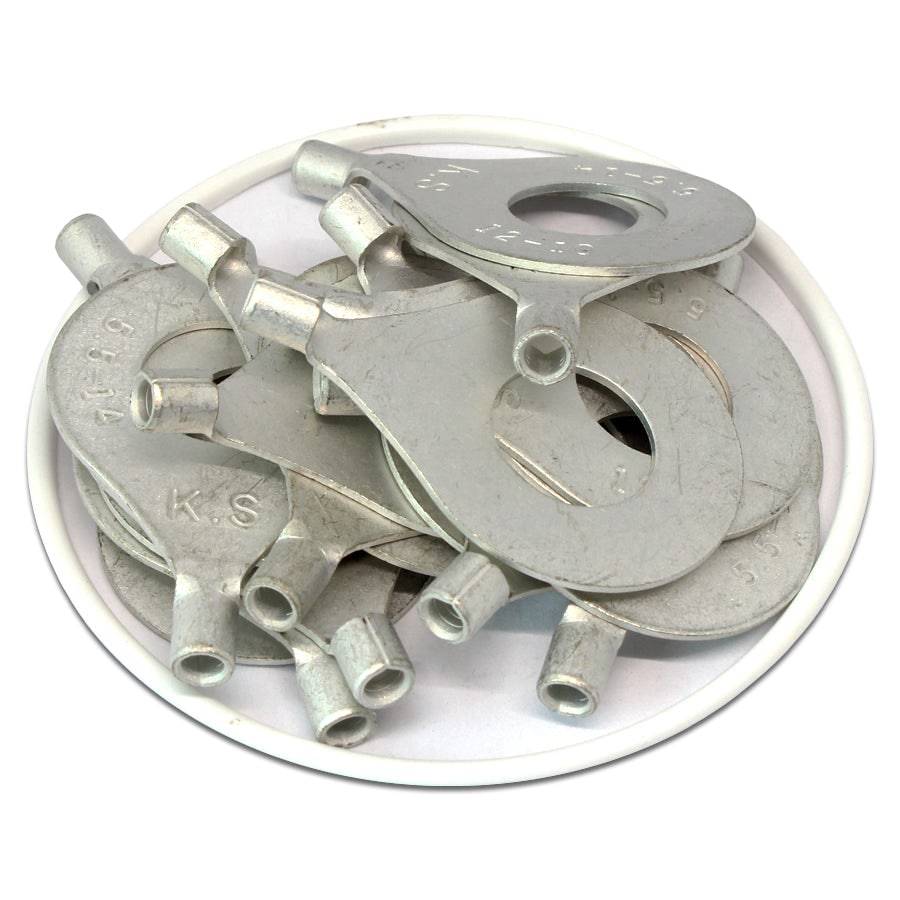

| Reference pack size | 50 · source pack reference |
| Wire Range | 12-10 AWG |
| T | 0.04" (1.0mm) |
| L | 1.9" (47.2mm) |
| F | 0.99" (25.2mm) |
| E | 0.24" (6.0mm) |
| W | 1.3" (32mm) |
| D | 0.22" (5.6mm) |
| D1 | 0.13" (3.4mm) |
| D2 | 0.83" (21mm) |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |
| Stud Size | 3/4" Stud |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 50 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
