Technical reference

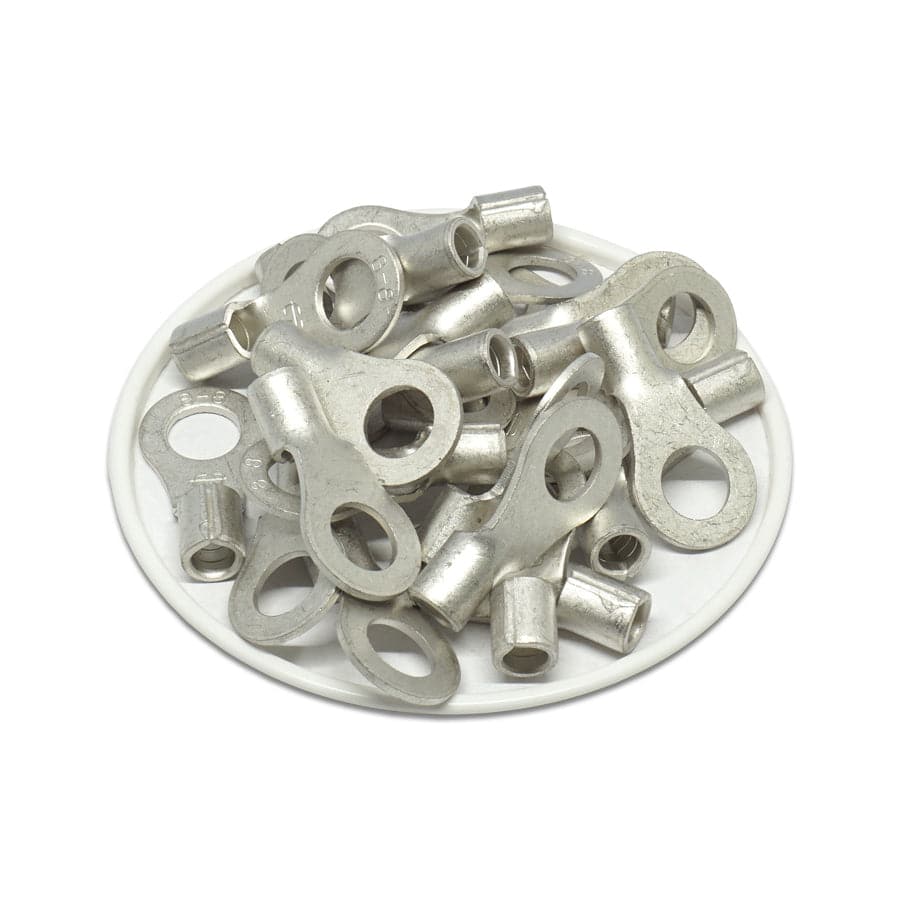

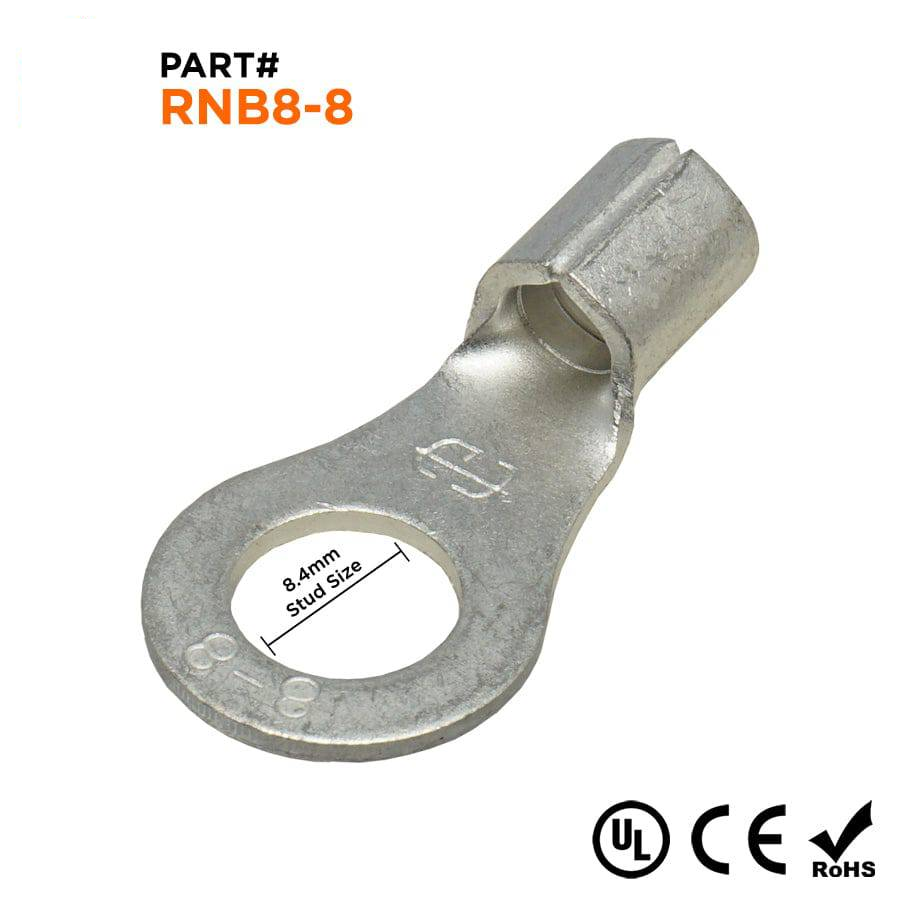

Procurement reference model: RNB8-8. Wire Range: 8 AWG; T: 0.06" (1.2mm); L: 1.2" (29.2mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 25 · source pack reference |
| Wire Range | 8 AWG |
| T | 0.06" (1.2mm) |
| L | 1.2" (29.2mm) |
| F | 0.54" (13.6mm) |
| E | 0.34" (8.5mm) |
| W | 0.59" (15.0mm) |
| D | 0.28" (7.2mm) |
| D1 | 0.18" (4.5mm) |
| D2 | 0.33" (8.4mm) |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |
| Stud Size | 5/16" Stud |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 70 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
