Technical reference

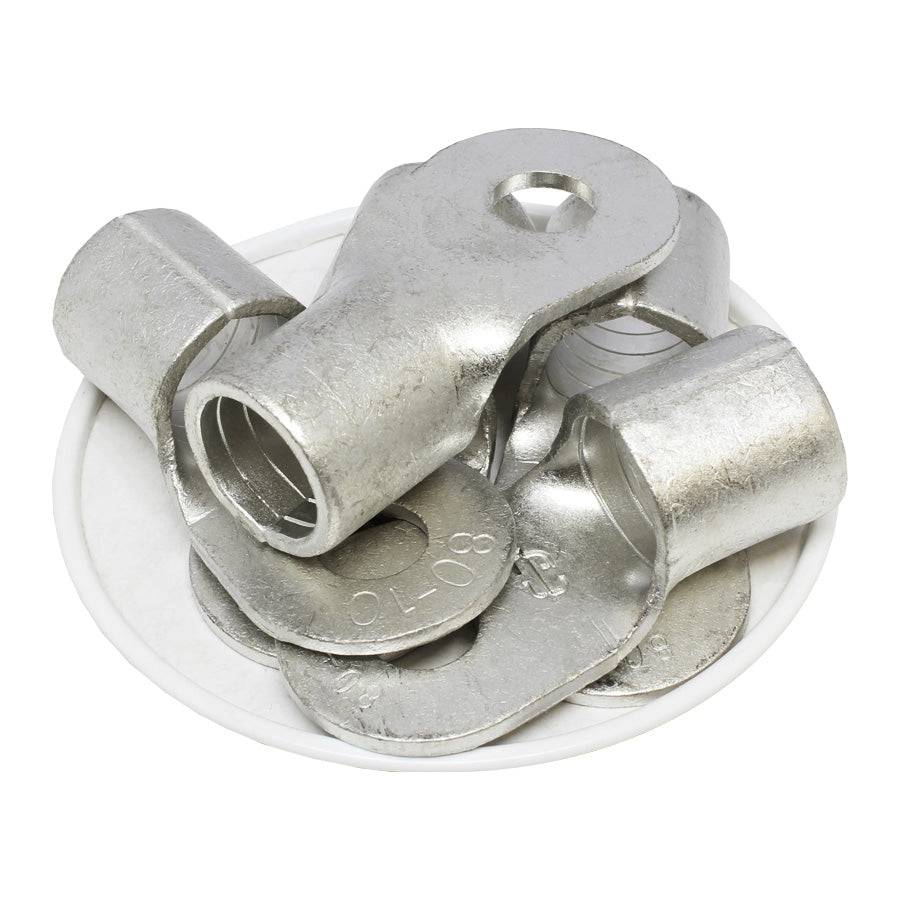

Procurement reference model: RNB80-10. Wire Range: 3/0 AWG; T: 0.09" (2.2mm); L: 2.1" (54.2mm). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Range | 3/0 AWG |
| T | 0.09" (2.2mm) |
| L | 2.1" (54.2mm) |
| F | 0.81" (20.7mm) |
| E | 0.79" (20mm) |
| W | 1.06" (27mm) |
| D | 0.79" (19.5mm) |
| D1 | 0.57" (14.5mm) |
| D2 | 0.41" (10.5mm) |
| Terminal Material | Tin-Plated Copper |
| Seam | Brazed |
| Stud Size | 3/8" Stud |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 265 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
