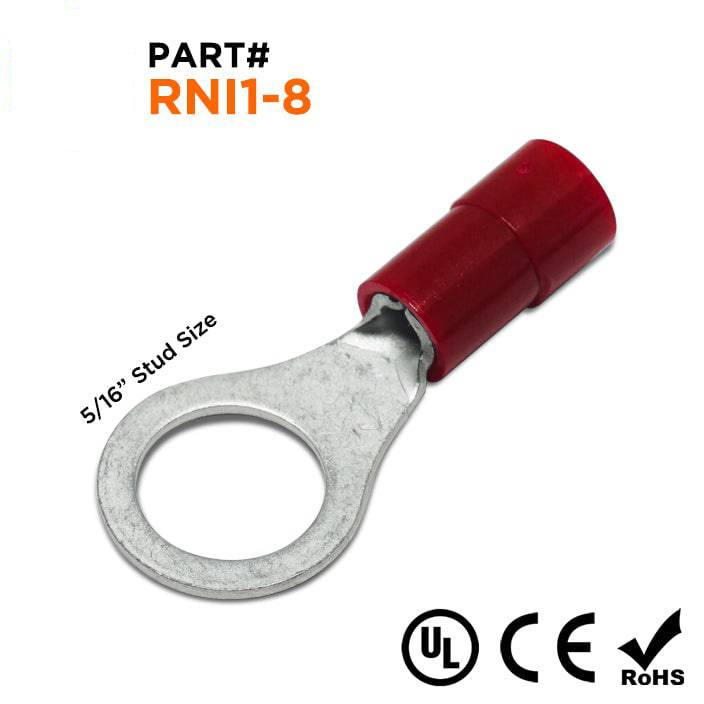

Procurement reference model: RNI1-8. Wire Size: 22-16 AWG; Stud Size: 5/16" Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | 5/16" Stud |
| Color | Red |
| T | 0.75mm (0.03") |
| L | 27.8mm (1.094") |
| F | 11.0mm (0.433") |
| E | 11.0mm (0.433") |
| W | 11.6mm (0.457") |
| D | 4.0mm (0.157") |
| D1 | 1.7mm (0.067") |
| D2 | 8.4mm (0.331") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Polycarbonate |
| Max Electrical Rating | 600 Volts (105°C) |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
