Technical reference

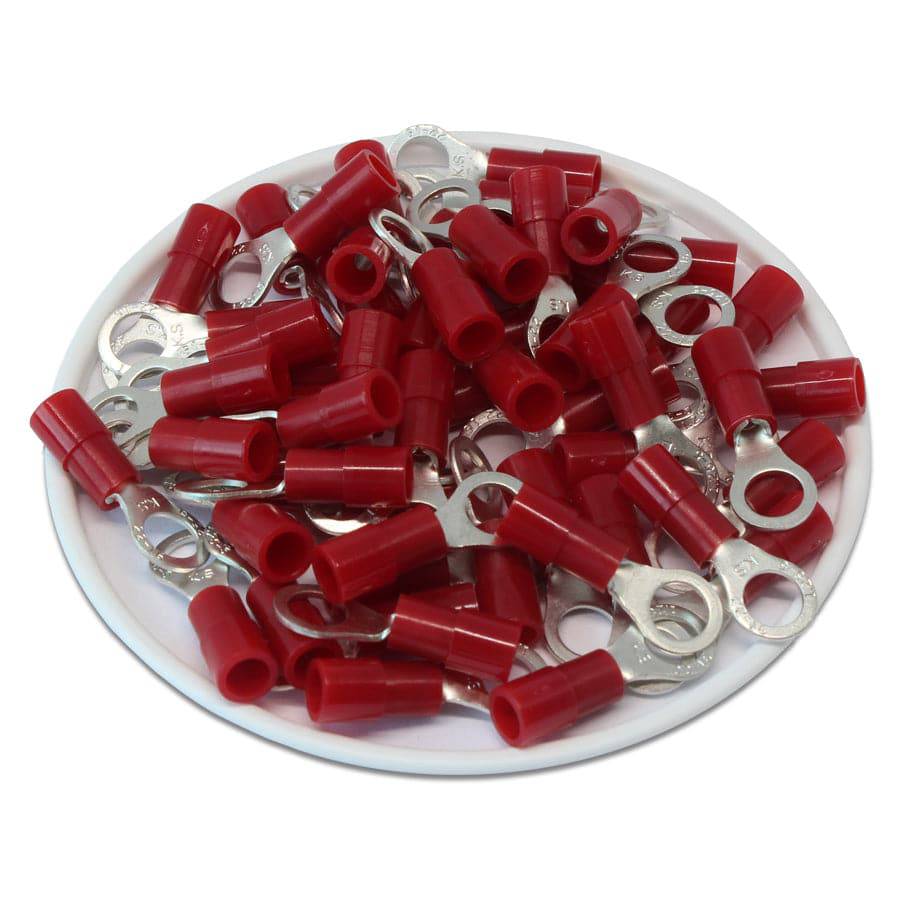

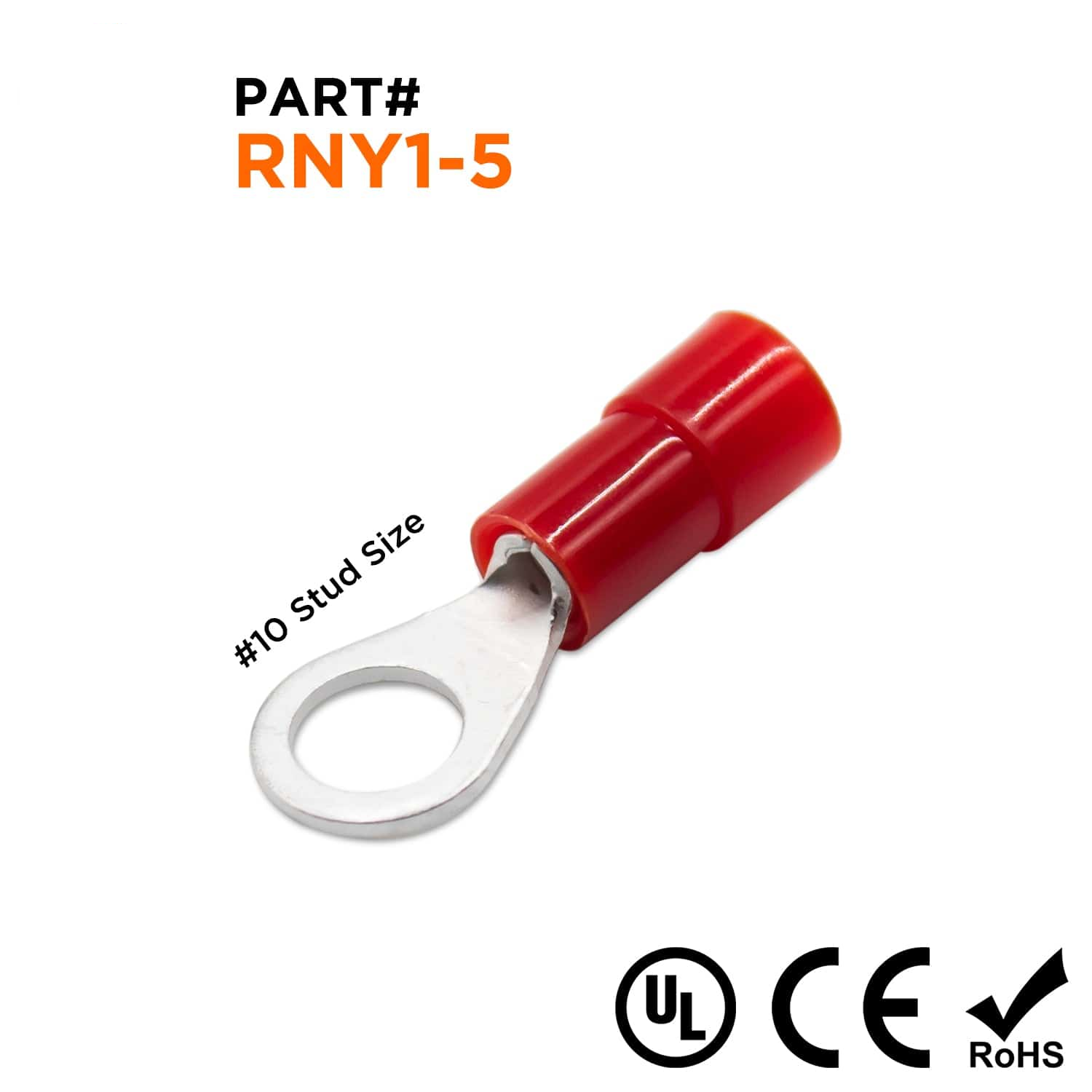

Procurement reference model: RNY1-5. T: 0.75mm (0.03"); L: 21.8mm (0.86"); F: 7mm (0.27"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| T | 0.75mm (0.03") |
| L | 21.8mm (0.86") |
| F | 7mm (0.27") |
| E | 11mm (0.43") |
| W | 8mm (0.32") |
| D | 4mm (0.16") |
| D1 | 1.7mm (0.07") |
| D2 | 5.3mm (0.21") |
| Wire Range | 22-16 AWG |
| Color | Red |
| Terminal Material | Tin-Plated Copper |
| Terminal Insulation | Nylon |
| Max Electrical Rating | 600 Volts (105 o C) |
| Seam | Butted |
| Stud Size | #10 |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
