Technical reference

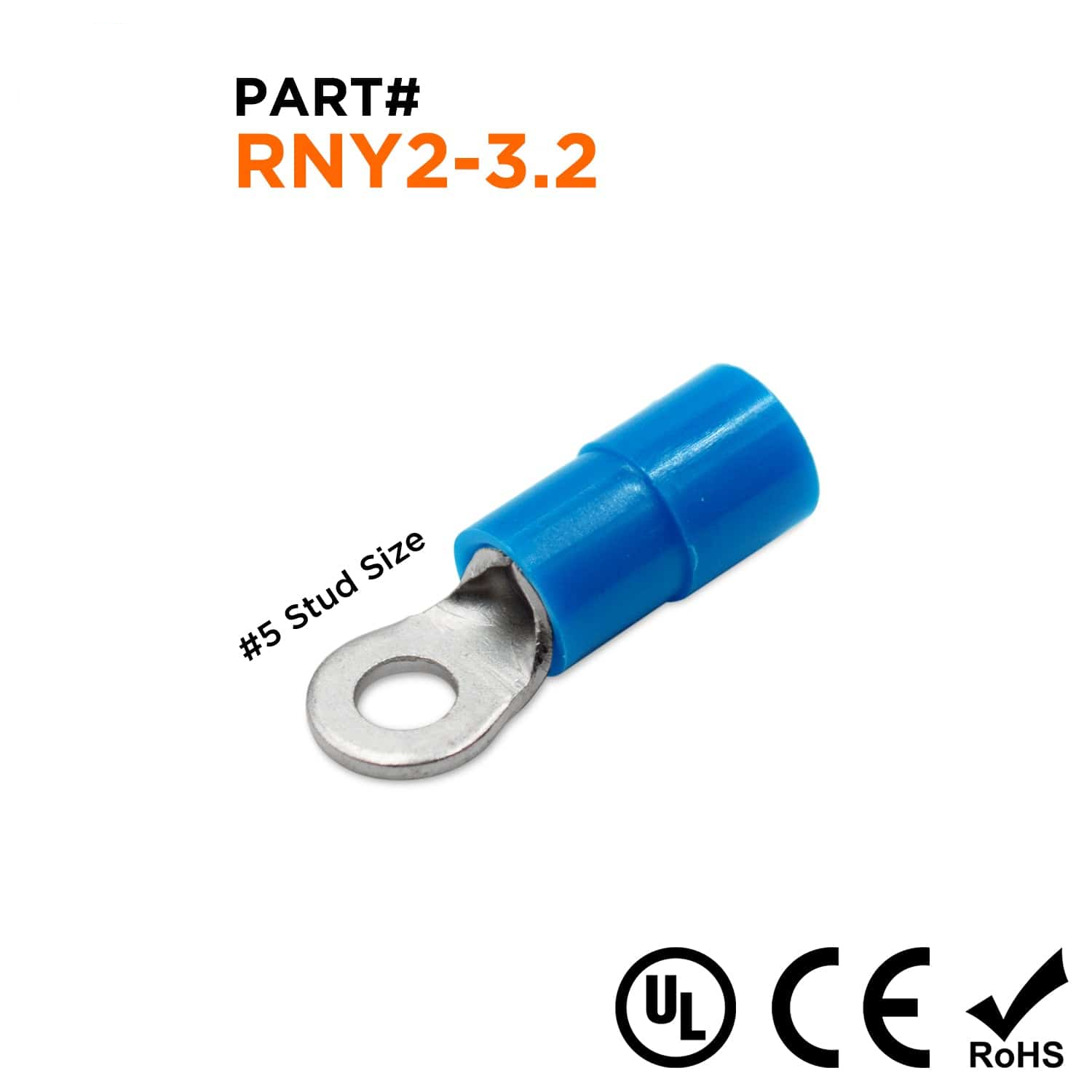

Procurement reference model: RNY2-32. T: 0.8mm (0.03"); L: 18.8mm (0.74"); F: 4.8mm (0.19"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| T | 0.8mm (0.03") |
| L | 18.8mm (0.74") |
| F | 4.8mm (0.19") |
| E | 11mm (0.43") |
| W | 6.6mm (0.26") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| D2 | 3.2mm (0.13") |
| Wire Range | 16-14 AWG |
| Color | Blue |
| Terminal Material | Tin-Plated Copper |
| Terminal Insulation | Nylon |
| Max Electrical Rating | 600 Volts (105 o C) |
| Seam | Butted |
| Stud Size | #4 Stud |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
