Technical reference

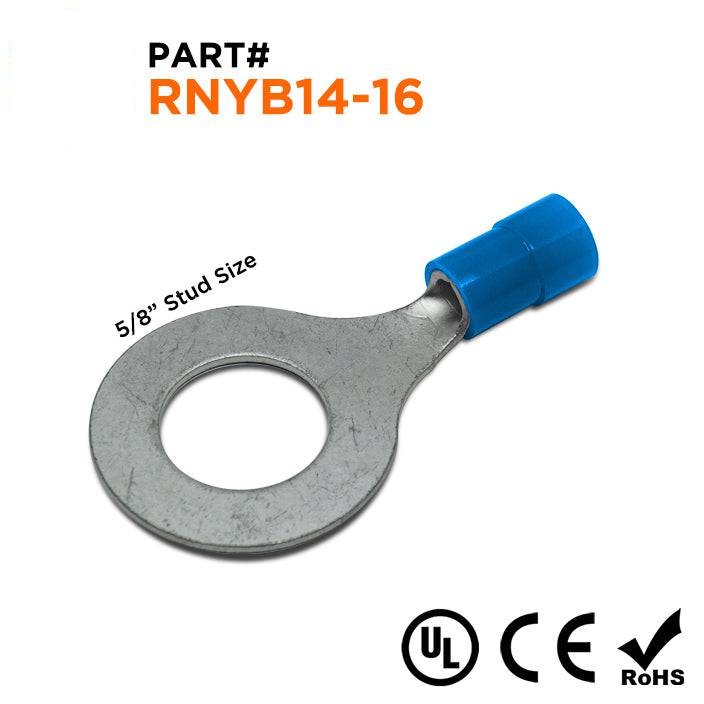

Procurement reference model: RNYB14-16. Wire Size: 6 AWG; Stud Size: 5/8" Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Size | 6 AWG |
| Stud Size | 5/8" Stud |
| Color | Blue |
| T | 1.5mm (0.059") |
| L | 62.0mm (2.441") |
| F | 25.3mm (0.996") |
| E | 21.5mm (0.846") |
| W | 31.6mm (1.244") |
| D | 11.0mm (0.433") |
| D1 | 5.8mm (0.228") |
| D2 | 17.0mm (0.669") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 600 Volts (105°C) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
