Technical reference

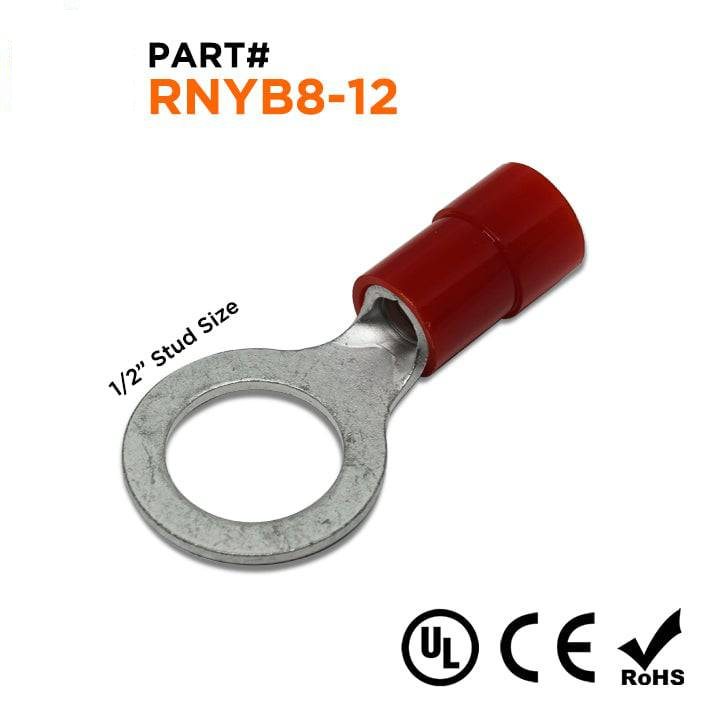

Procurement reference model: RNYB8-12. T: 1.2mm (0.05"); L: 40.5mm (1.59"); F: 15.2mm (0.598"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| T | 1.2mm (0.05") |
| L | 40.5mm (1.59") |
| F | 15.2mm (0.598") |
| E | 15.9mm (0.625") |
| W | 19.7mm (0.775") |
| D | 7.9mm (0.311") |
| D1 | 4.5mm (0.177") |
| D2 | 13.0mm (0.511") |
| Color | Red |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 600 Volts (105 o C) |
| Stud Size | 1/2" |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
| Reference wire range | 12 - 8 AWG |
