Technical reference

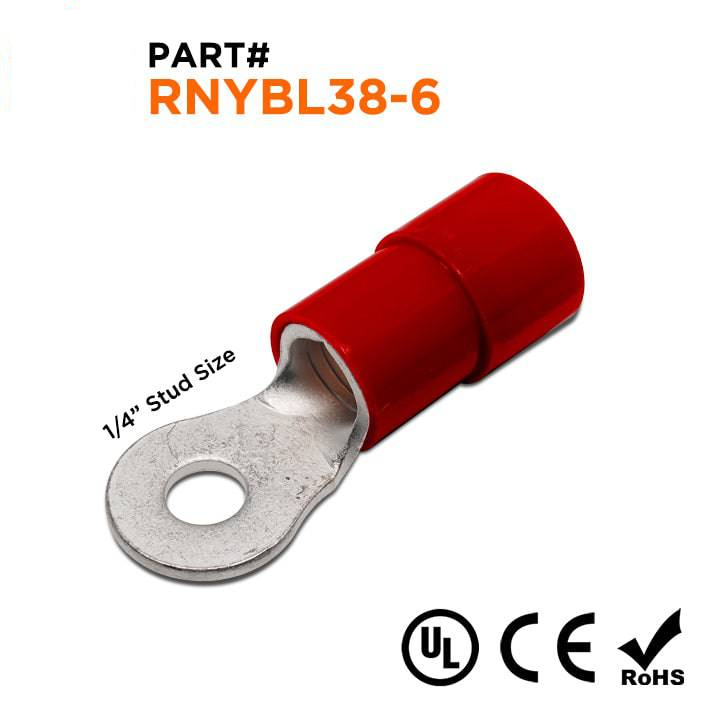

Procurement reference model: RNYBL38-6. Wire Size: 2 AWG; Stud Size: 1/4" Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Size | 2 AWG |
| Stud Size | 1/4" Stud |
| Color | Red |
| T | 1.8mm (0.067") |
| L | 55.7mm (2.193") |
| F | 17.7mm (0.697") |
| E | 27.0mm (1.063") |
| W | 22.0mm (0.866") |
| D | 14.5mm (0.571") |
| D1 | 9.4mm (0.370") |
| D2 | 6.5mm (0.255") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 600 Volts (105°C) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
