Technical reference

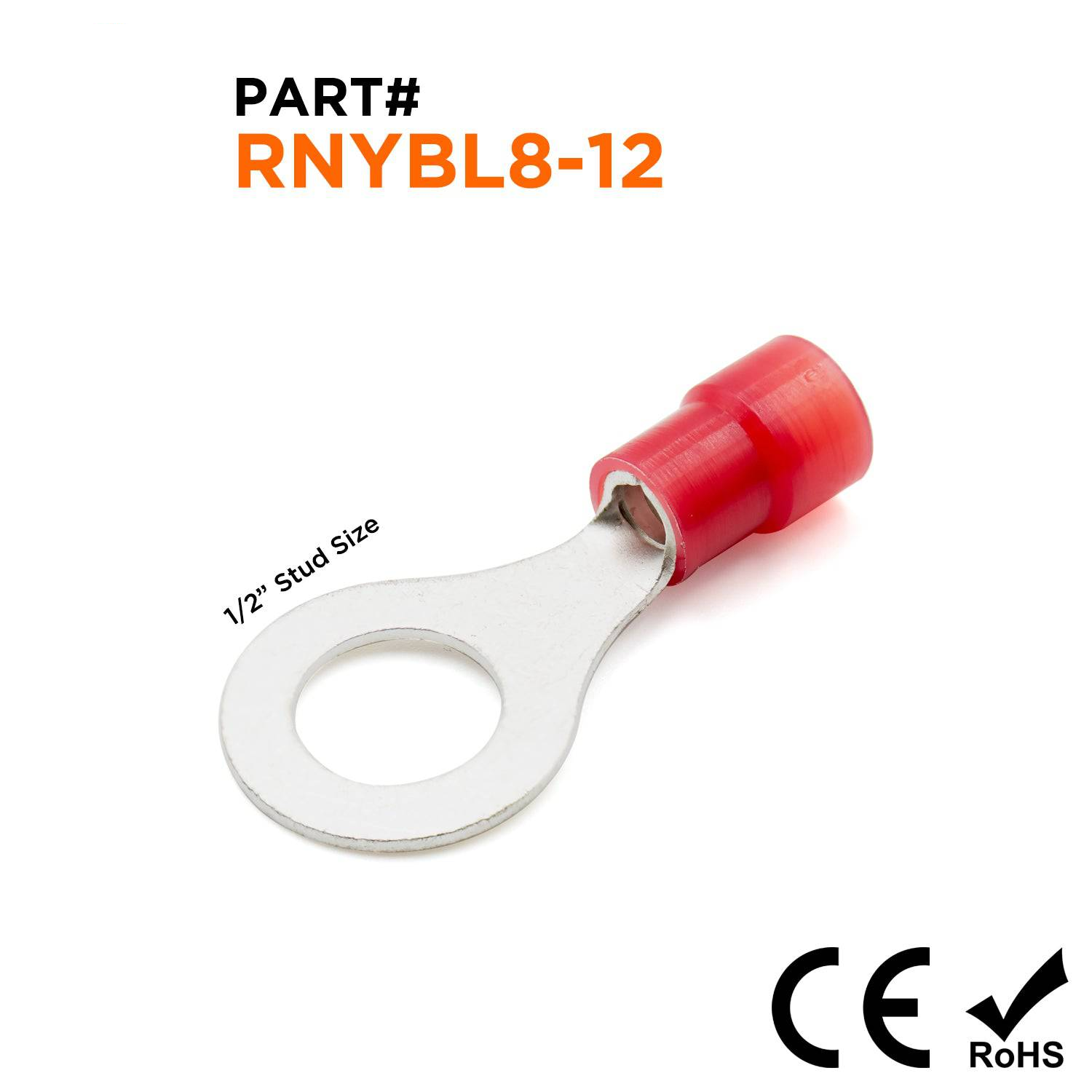

Procurement reference model: RNYBL8-12. Wire Size: 8 AWG; Stud Size: 1/2" Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 10 · source pack reference |
| Wire Size | 8 AWG |
| Stud Size | 1/2" Stud |
| Color | Red |
| T | 1.2mm (0.047") |
| L | 46.48mm (1.829") |
| F | 20.0mm (0.787") |
| E | 15.79mm (0.621") |
| W | 22.0mm (0.866") |
| D | 8.0mm (0.315") |
| D1 | 4.5mm (0.177") |
| D2 | 12.9mm (0.507") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 600 Volts (105°C) |
| UL Recognized | No |
| CE Certified | Yes |
| RoHS Compliant | Yes |
