Technical reference

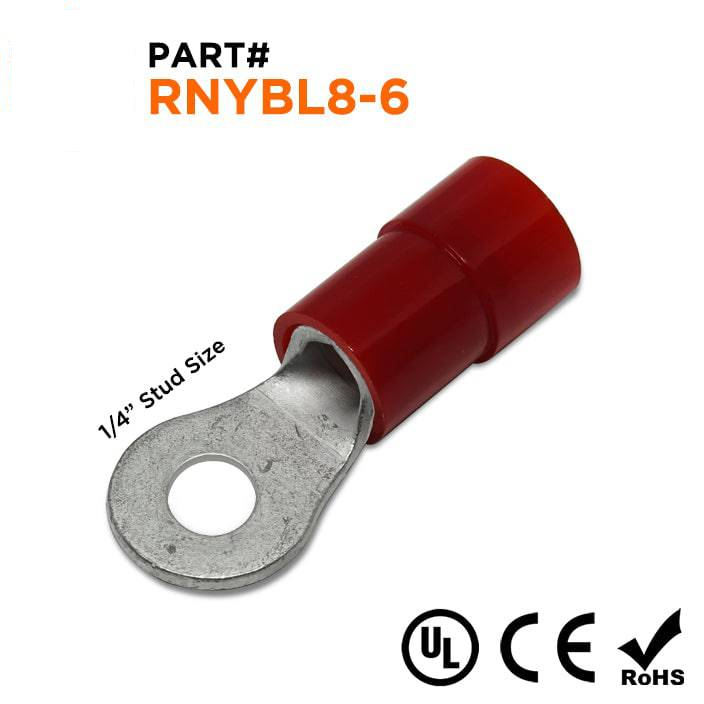

Procurement reference model: RNYBL8-6. T: 1.2mm (0.05"); L: 36.9mm (1.45"); F: 13.5mm (0.53"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| T | 1.2mm (0.05") |
| L | 36.9mm (1.45") |
| F | 13.5mm (0.53") |
| E | 15.9mm (0.63") |
| W | 15mm (0.59") |
| D | 9.1mm (0.36") |
| D1 | 4.5mm (0.18") |
| D2 | 9.4mm (0.25") |
| Color | Red |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 600 Volts (105 o C) |
| Wire Size | 8 AWG |
| Stud Size | 1/4" |
| Seam | Brazed |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
