Technical reference

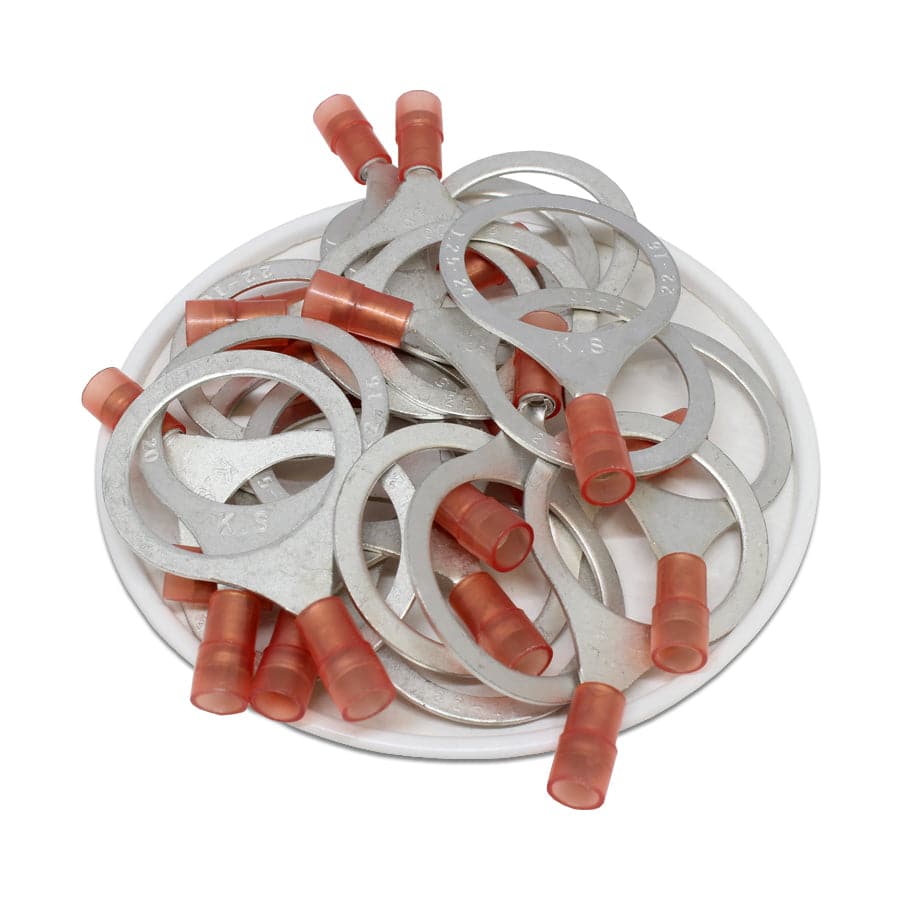

Procurement reference model: RNYD1-20. Wire Size: 22-16 AWG; Stud Size: 3/4" Stud; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | 3/4" Stud |
| Color | Red |
| T | 0.8mm (.03") |
| L | 45.3mm (1.78") |
| F | 21mm (0.83") |
| E | 11mm (0.43") |
| W | 27mm (1.06") |
| D | 4.5mm (0.18") |
| D1 | 1.7mm (.07") |
| D2 | 21mm (0.83") |
| Terminal Insulation | Nylon |
| Terminal Material | Tin-Plated Copper |
| Max Voltage Rating | 105°C - 600 Volts |
| Max Electrical Current | 18AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
