Technical reference

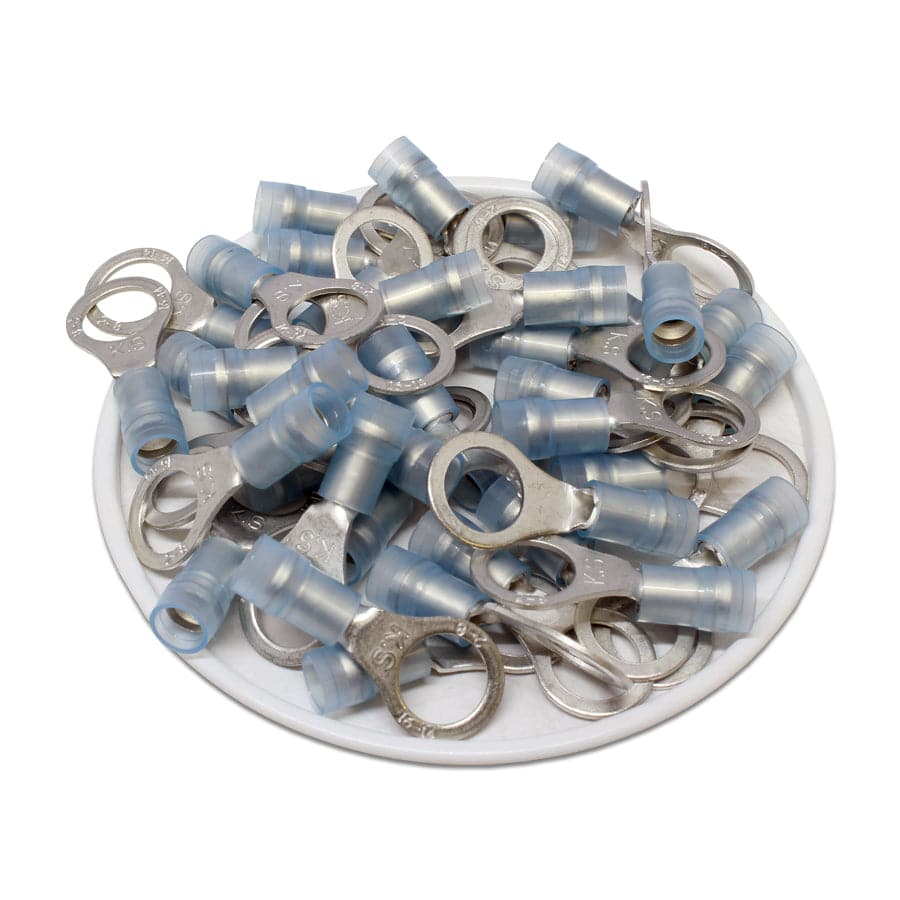

Procurement reference model: RNYD2-8. Wire Size: 16-14 AWG; Stud Size: 5/16" Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 1 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | 5/16" Stud |
| Color | Blue |
| T | 0.8mm (.03") |
| L | 27.8mm (1.09") |
| F | 11mm (0.43") |
| E | 11mm (0.43") |
| W | 12mm (0.47") |
| D | 5.2mm (0.21") |
| D1 | 2.3mm (.09") |
| D2 | 8.4mm (0.33") |
| Terminal Insulation | Nylon |
| Terminal Material | Tin-Plated Copper |
| Max Voltage Rating | 105°C - 600 Volts |
| Max Electrical Current | 30AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
