Technical reference

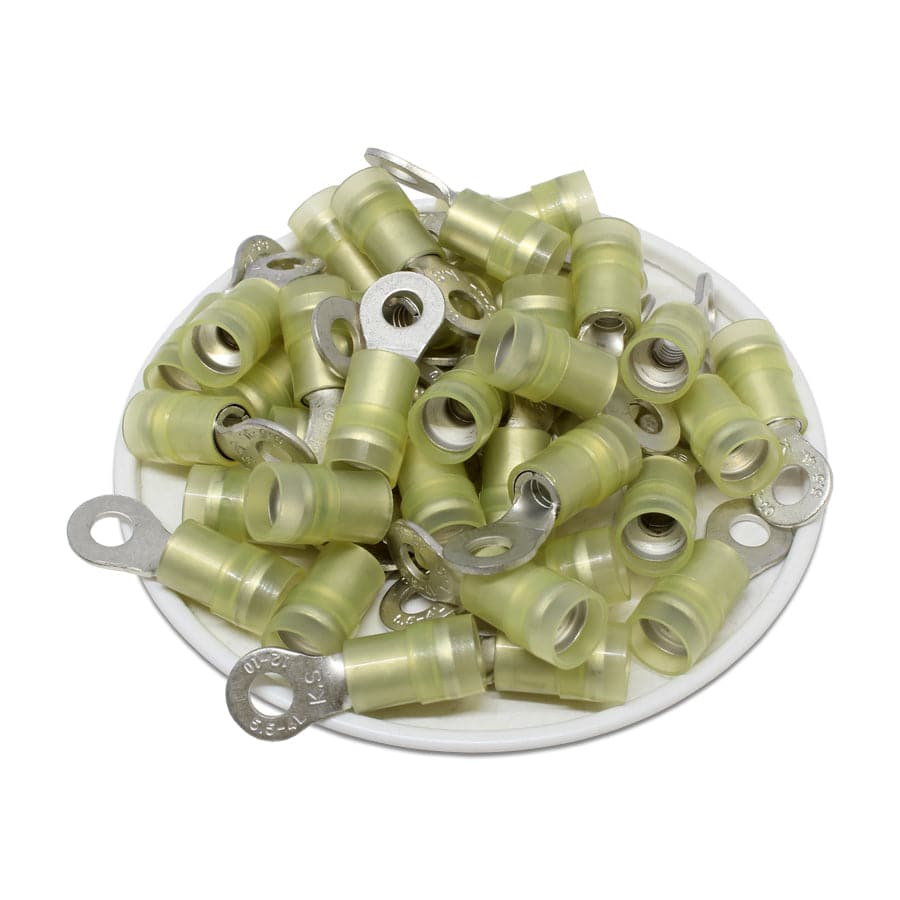

Procurement reference model: RNYDL5-4. Wire Size: 12-10 AWG; Stud Size: #8 Stud; Seam: Butted. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| Wire Size | 12-10 AWG |
| Stud Size | #8 Stud |
| Seam | Butted |
| Color | Yellow |
| T | 1.2mm (0.047") |
| L | 26.0mm (1.02") |
| F | 8.3mm (0.33") |
| E | 13.0mm (0.51") |
| W | 9.5mm (0.37") |
| D | 6.4mm (0.25") |
| D1 | 3.4mm (0.13") |
| D2 | 4.3mm (0.17") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Nylon |
| Max Electrical Rating | 600 Volts (105°C) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
