Technical reference

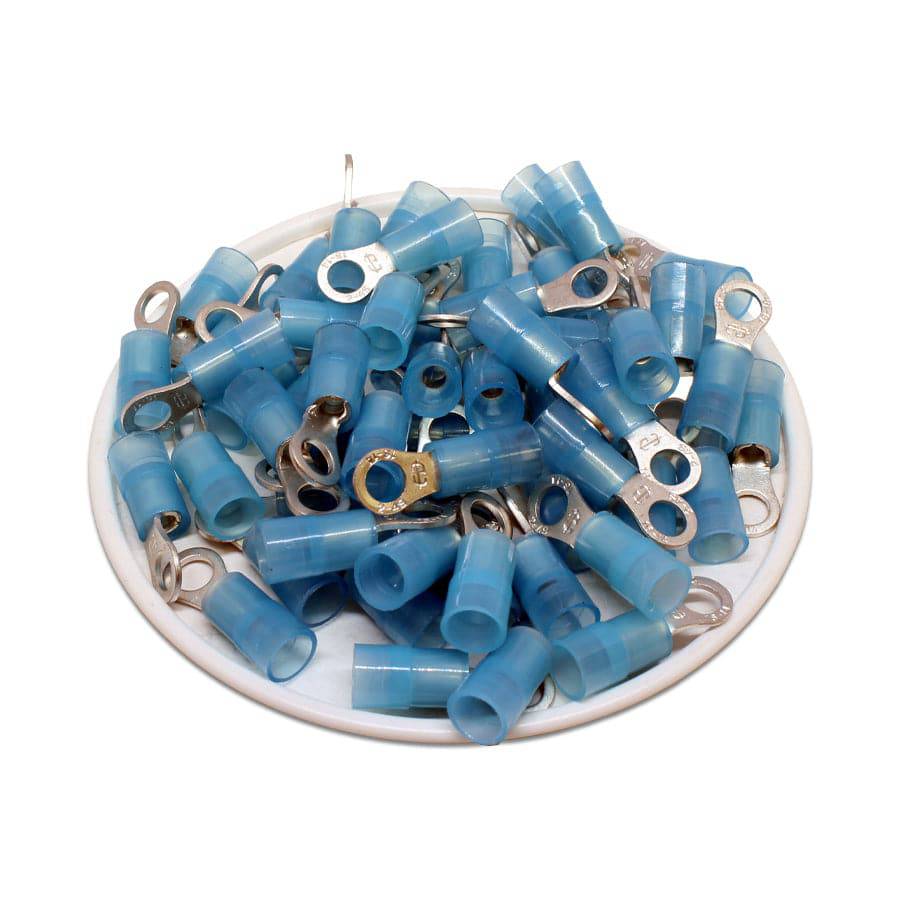

Procurement reference model: RNYS2-4. Wire Range: 16-14 AWG; Stud Size: #8; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 16-14 AWG |
| Stud Size | #8 |
| Color | Blue |
| T | 0.8mm (0.03") |
| L | 20.4mm (0.80") |
| F | 6.3mm (0.25") |
| E | 11mm (0.43") |
| W | 6.6mm (0.26") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.09") |
| D2 | 4.3mm (0.17") |
| Seam | Butted |
| Terminal Material | Tin-Plated Copper |
| Terminal Insulation | Nylon |
| Max Electrical Rating | 600 Volts (105 o C) |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

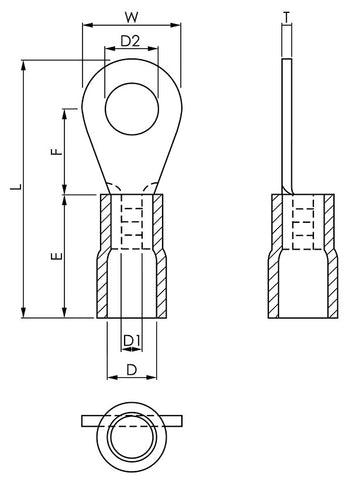

Drawings and product details
