Technical reference

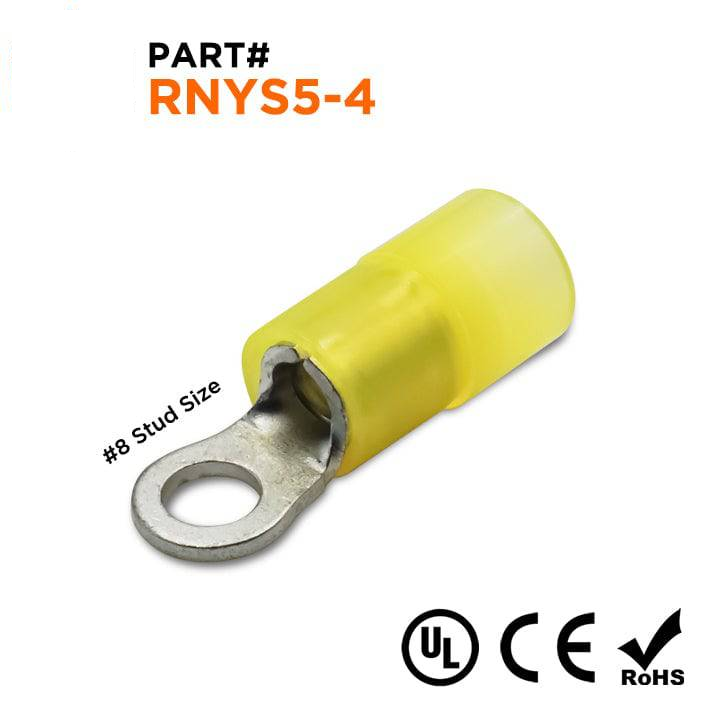

Procurement reference model: RNYS5-4. T: 1mm (0.04"); L: 22.7mm (0.89"); F: 6.1mm (0.24"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 50 · source pack reference |
| T | 1mm (0.04") |
| L | 22.7mm (0.89") |
| F | 6.1mm (0.24") |
| E | 13mm (0.51") |
| W | 7.2mm (0.28") |
| D | 6.4mm (0.25") |
| D1 | 3.4mm (0.13") |
| D2 | 4.3mm (0.17") |
| Wire Range | 12-10 AWG |
| Color | Yellow |
| Terminal Material | Tin-Plated Copper |
| Terminal Insulation | Nylon |
| Max Electrical Rating | 600 Volts (105 o C) |
| Seam | Butted |
| Stud Size | #8 |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |

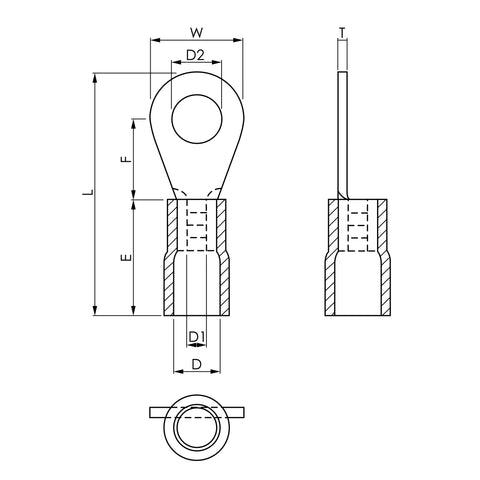

Drawings and product details
