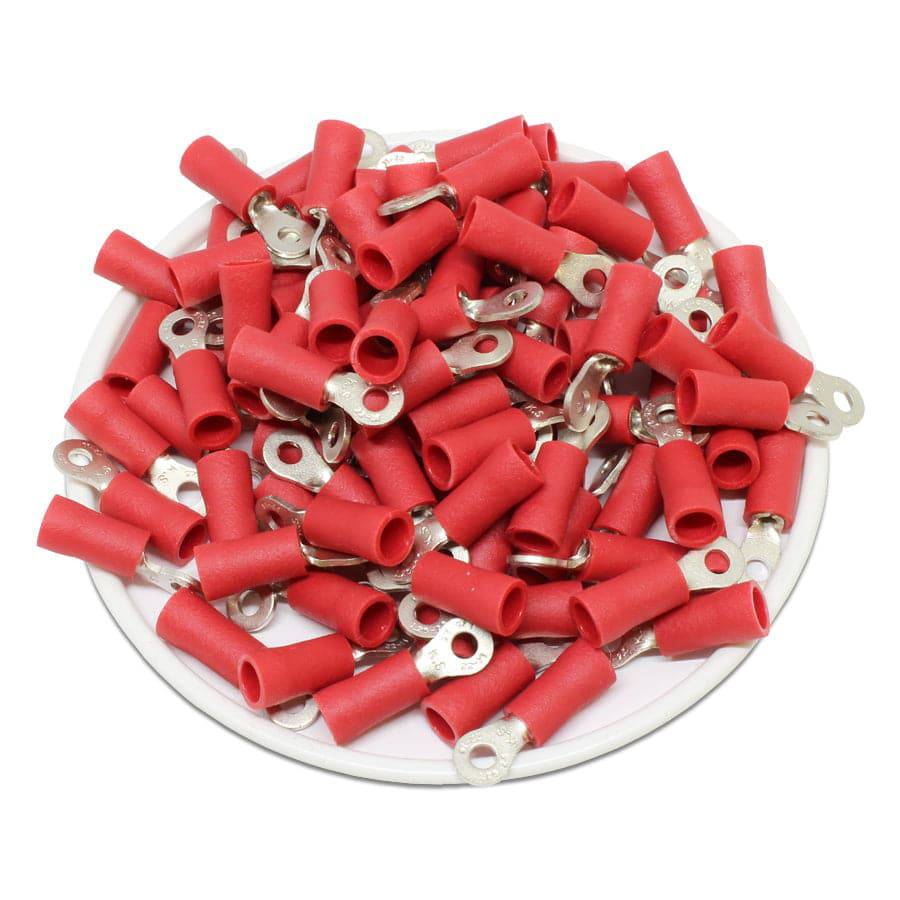

Procurement reference model: RV1-25. Wire Range: 22-16 AWG; Stud Size: #2; Terminal Material: PVC Vinyl & Tin-Plated Copper. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Range | 22-16 AWG |
| Stud Size | #2 |
| Terminal Material | PVC Vinyl & Tin-Plated Copper |
| Seam | Butted |
| T | 0.03" (0.75mm) |
| L | 0.685" (17.4mm) |
| F | 0.189" (4.8mm) |
| E | 0.394" (10.0mm) |
| W | 0.217" (5.5mm) |
| D | 0.157" (4.0mm) |
| D1 | 0.067" (1.7mm) |
| D2 | 0.095" (2.4mm) |
| Temperature Rating | 150 o C - 600 Volts |
| Max Electrical Rating | 18 AMP |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
