Technical reference

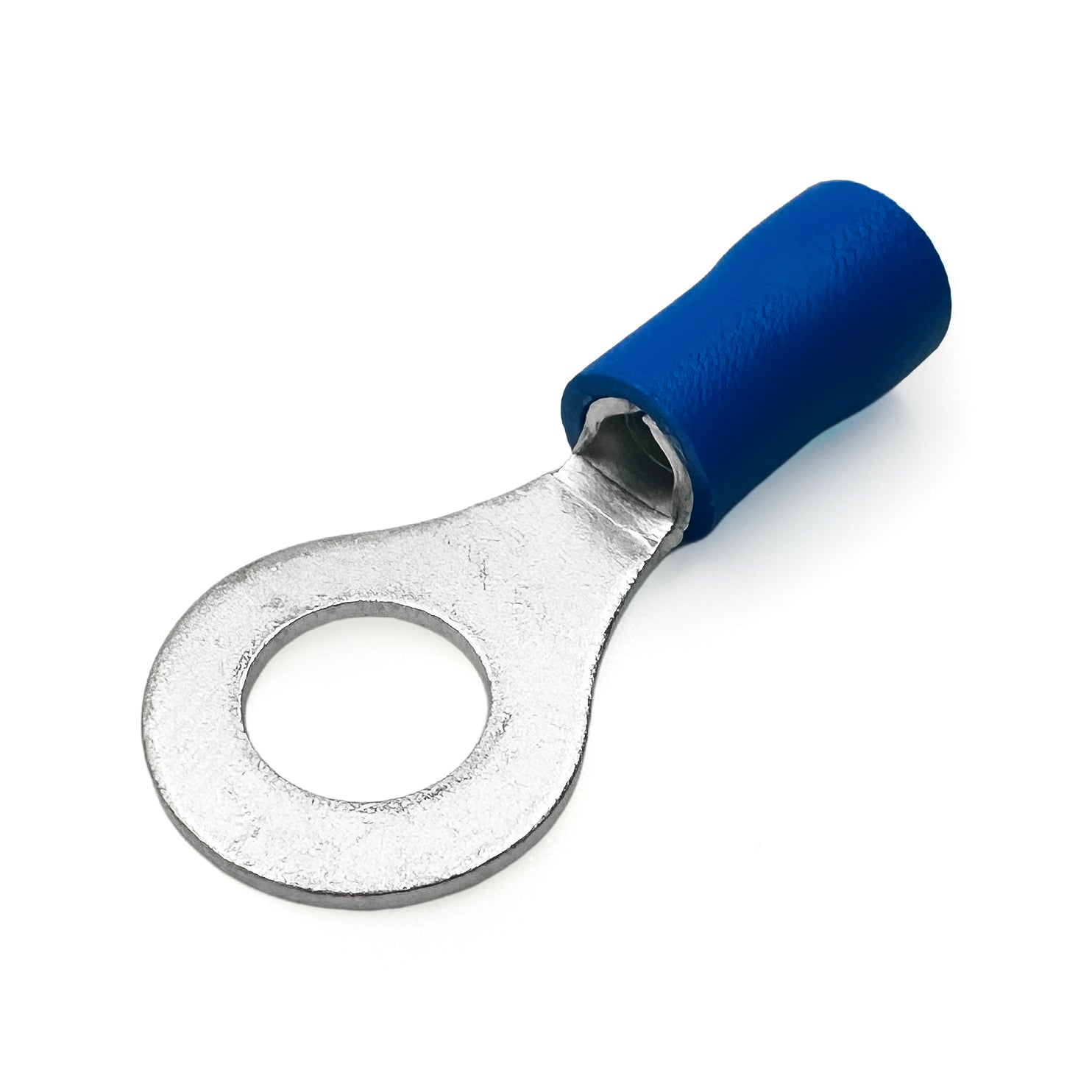

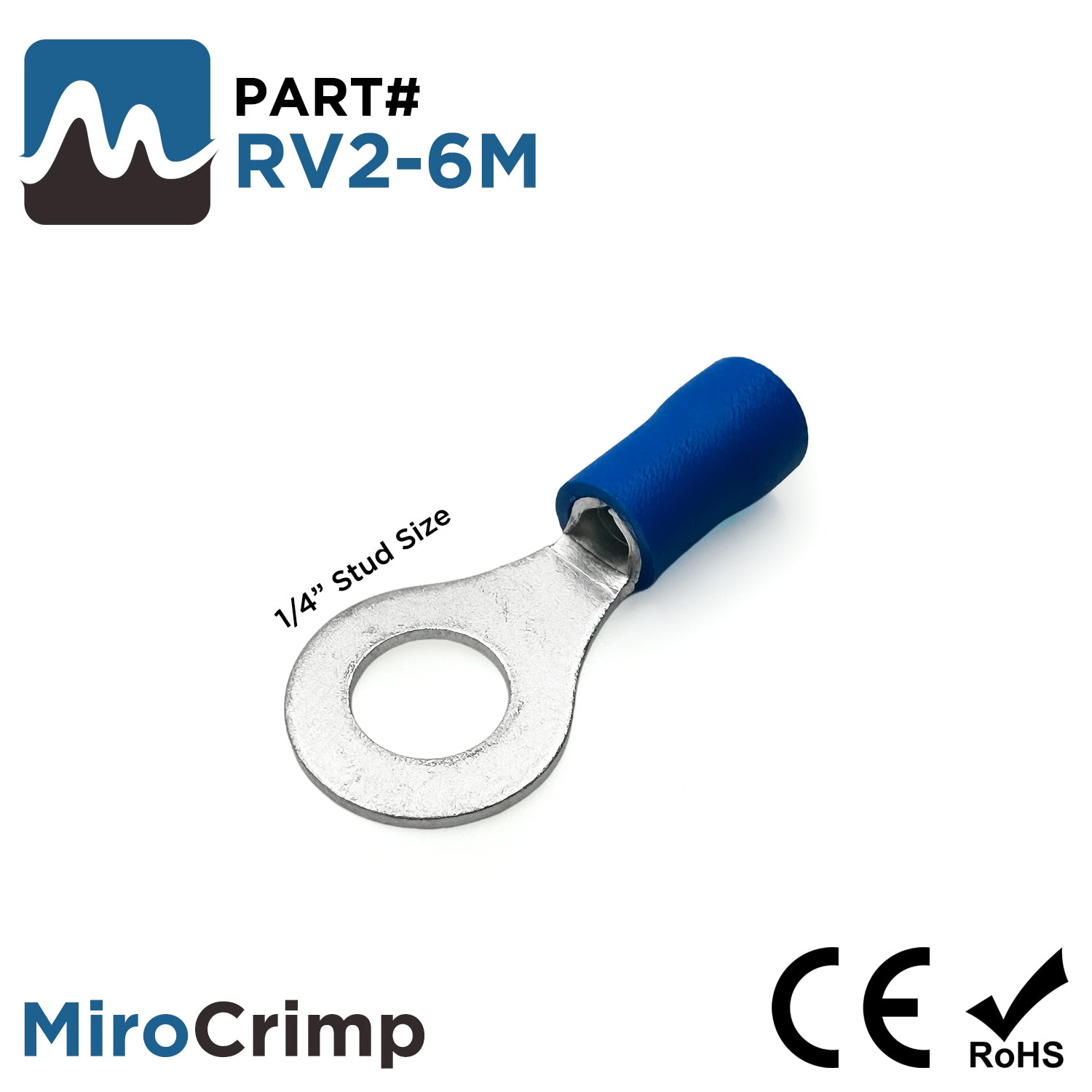

Procurement reference model: RV2-6M. Wire Size: 16 to 14 AWG; T: 0.8mm (0.03"); L: 26.8mm (1.10"). Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16 to 14 AWG |
| T | 0.8mm (0.03") |
| L | 26.8mm (1.10") |
| F | 11mm (0.43) |
| E | 10mm (0.39") |
| W | 12mm (0.47") |
| D | 4.5mm (0.18") |
| D1 | 2.3mm (0.07") |
| D2 | 6.4mm (0.25") |
| Color | Blue |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Seam | Butted |
| Stud Size | 1/4" |
| Temperature Rating | 105 o C |
| Voltage Rating | 600 Volts |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
