Technical reference

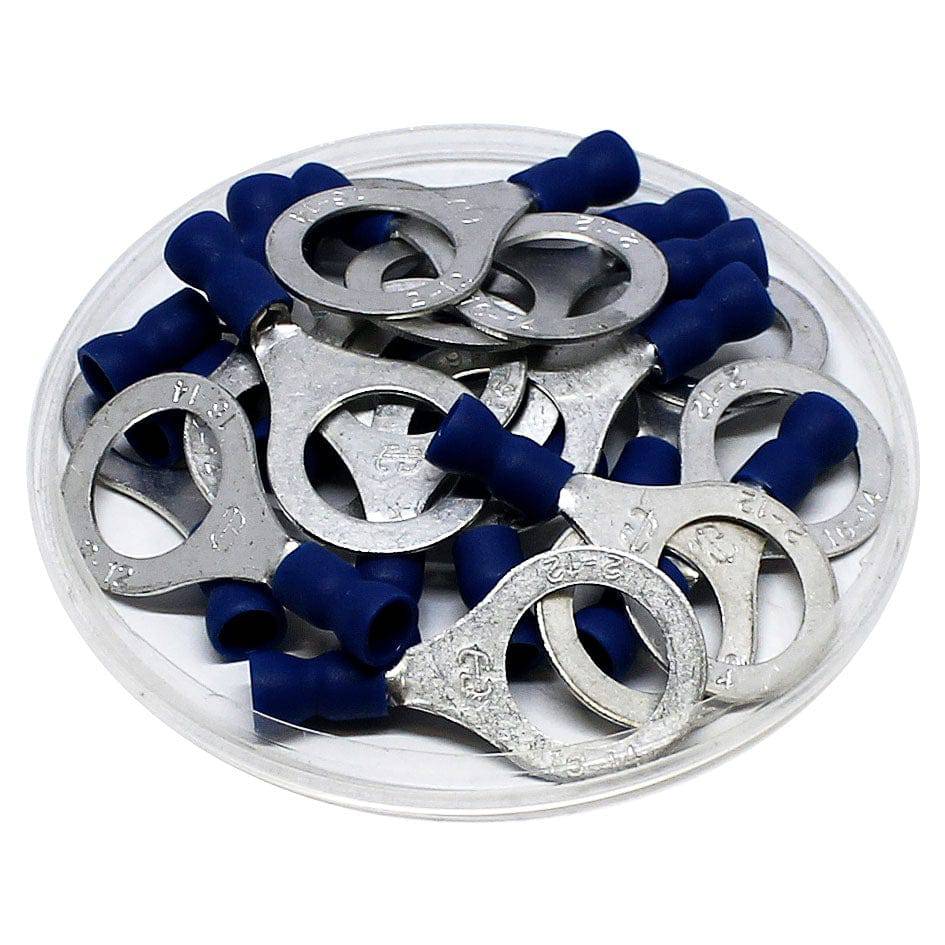

Procurement reference model: RVE2-10. Wire Size: 16-14 AWG; Stud Size: 3/8" Stud; Color: Blue. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 16-14 AWG |
| Stud Size | 3/8" Stud |
| Color | Blue |
| T | 0.8mm (0.031") |
| L | 30.5mm (1.20") |
| F | 13.9mm (0.547") |
| E | 10.0mm (0.394") |
| W | 13.6mm (0.535") |
| D | 4.5mm (0.177") |
| D1 | 2.3mm (0.091") |
| D2 | 10.5mm (0.413") |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105°C) |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
Drawings and product details
