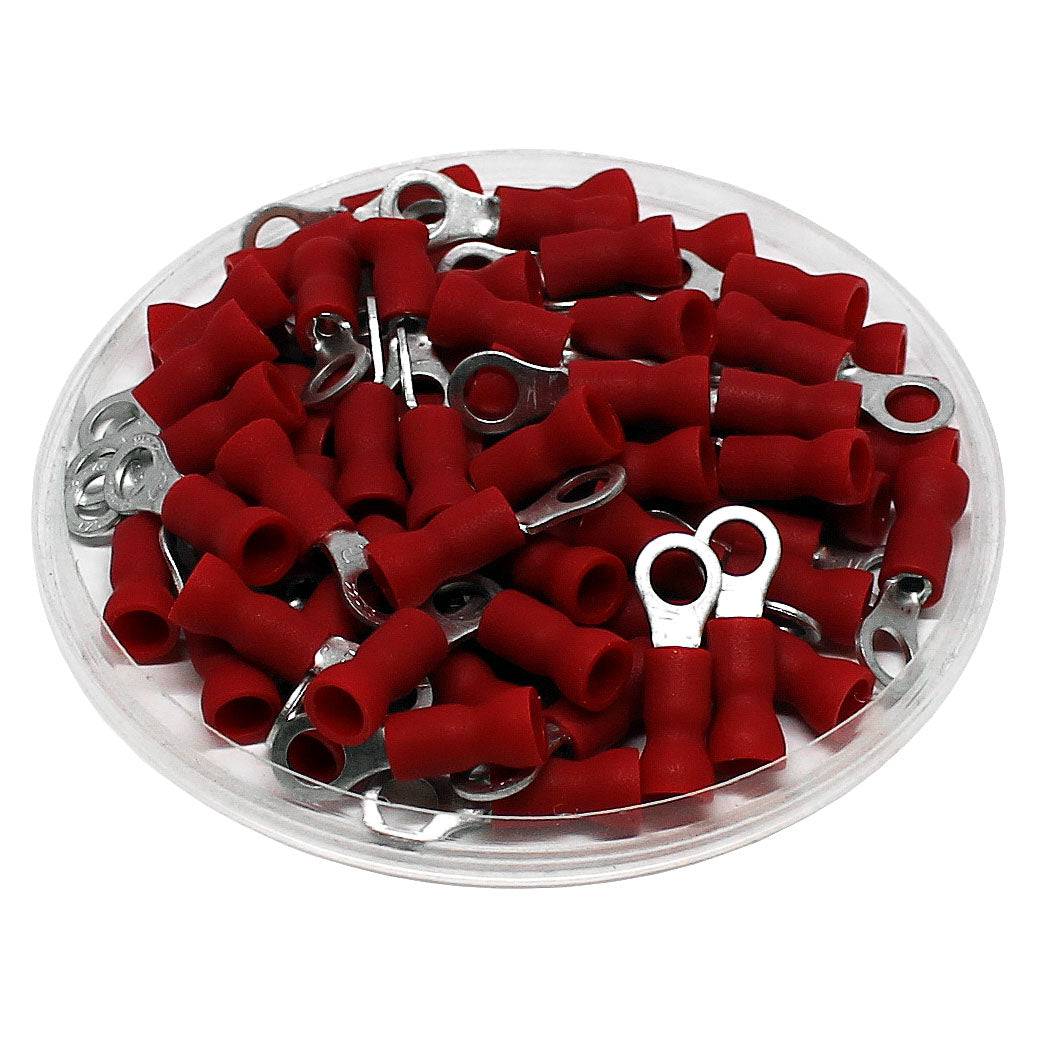

Procurement reference model: RVEL1-37. Wire Size: 22-16 AWG; Stud Size: #6; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | #6 |
| Color | Red |
| T | 0.75mm (0.03") |
| L | 20.6mm (0.811") |
| F | 7.0mm (0.275") |
| E | 11.2mm (0.440") |
| W | 8.0mm (0.314") |
| D | 4.0mm (0.157") |
| D1 | 1.7mm (0.067") |
| D2 | 3.7mm (0.145) |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105 ° C) |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
