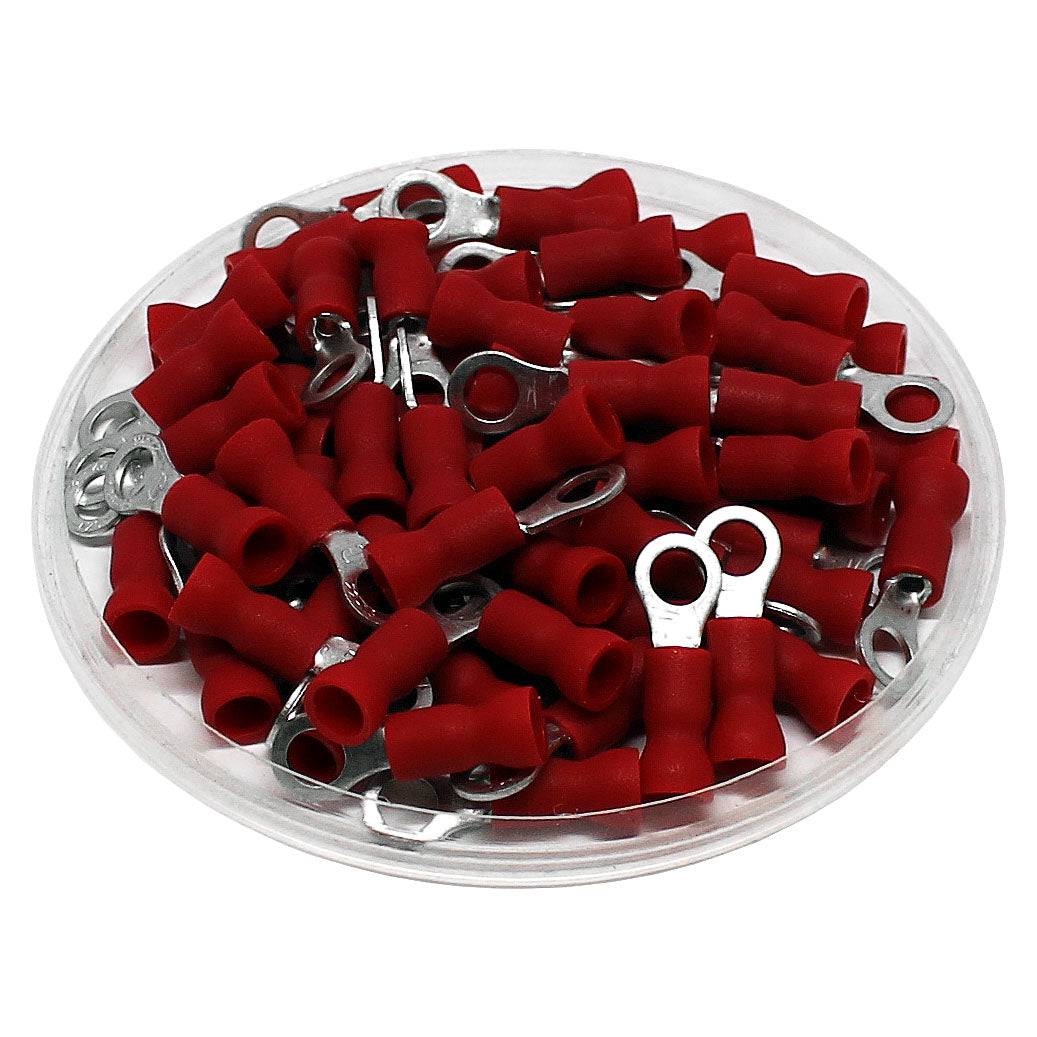

Procurement reference model: RVES1-37. Wire Size: 22-16 AWG; Stud Size: #6; Color: Red. Confirm the supplied equivalent and its specifications before ordering.
| Selling unit | piece |
|---|---|
| Reference pack size | 100 · source pack reference |
| Wire Size | 22-16 AWG |
| Stud Size | #6 |
| Color | Red |
| T | 0.75mm (0.03") |
| L | 18.3mm (0.72") |
| F | 4.9mm (0.192") |
| E | 10.5mm (0.413") |
| W | 5.7mm (0.224") |
| D | 4.3mm (0.169") |
| D1 | 1.7mm (0.067") |
| D2 | 3.7mm (0.145) |
| Terminal Material | Tin-Plated Copper |
| Insulation Material | Vinyl |
| Max Electrical Rating | 600 Volts (105 ° C) |
| Seam | Butted |
| UL Recognized | Yes |
| CE Certified | Yes |
| RoHS Compliant | Yes |
